SHT3111 110V-415V AC/110V-130V DC
100547
8592765005489

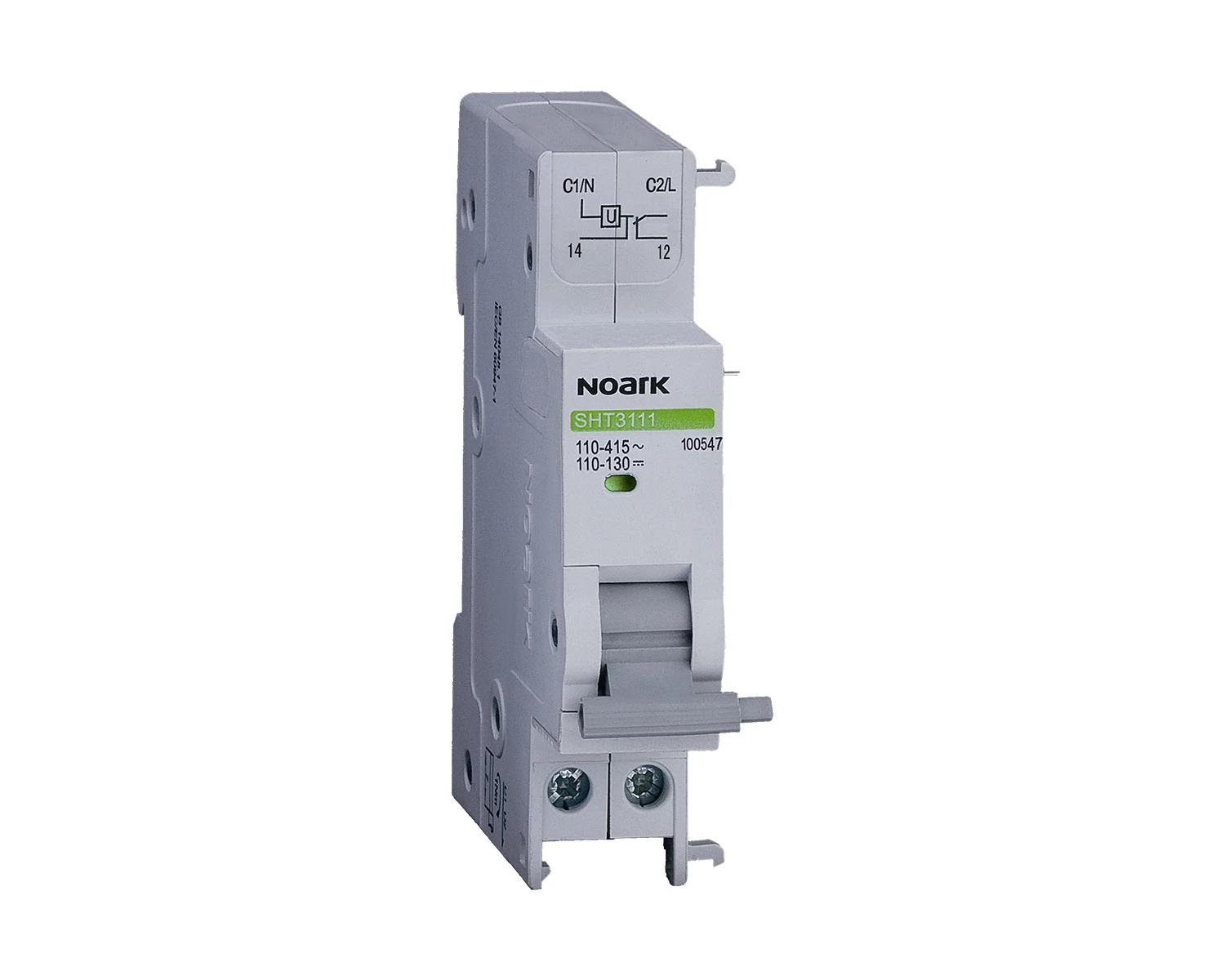

Shunt trip release, 110-415 V AC, 110-130 V DC, 1 change over auxiliary contact
| Device fitting | Miniature circuit breaker (MCB) |
| Additional equipment | Shunt release (for power circuit breaker) |
| Attached at delivery | Nie |
| Assembly width (TE) | 1 |
| Number of normally open contacts | 0 |
| Number of normally closed contacts | 0 |
| Number of change-over contacts | 1 |
| Number of fault-signal switches | 0 |
| Rated switch current [A] | - |
| Nominal rated voltage [V] | 230 |
| Control voltage type | AC/DC |
| With autotest for earth leakage function | Nie |
| Suitable for max. number of poles main contact unit (total) | 1 |
| Suitable for max. current main contact unit [A] | 125 |
| Width in number of modular spacings |
