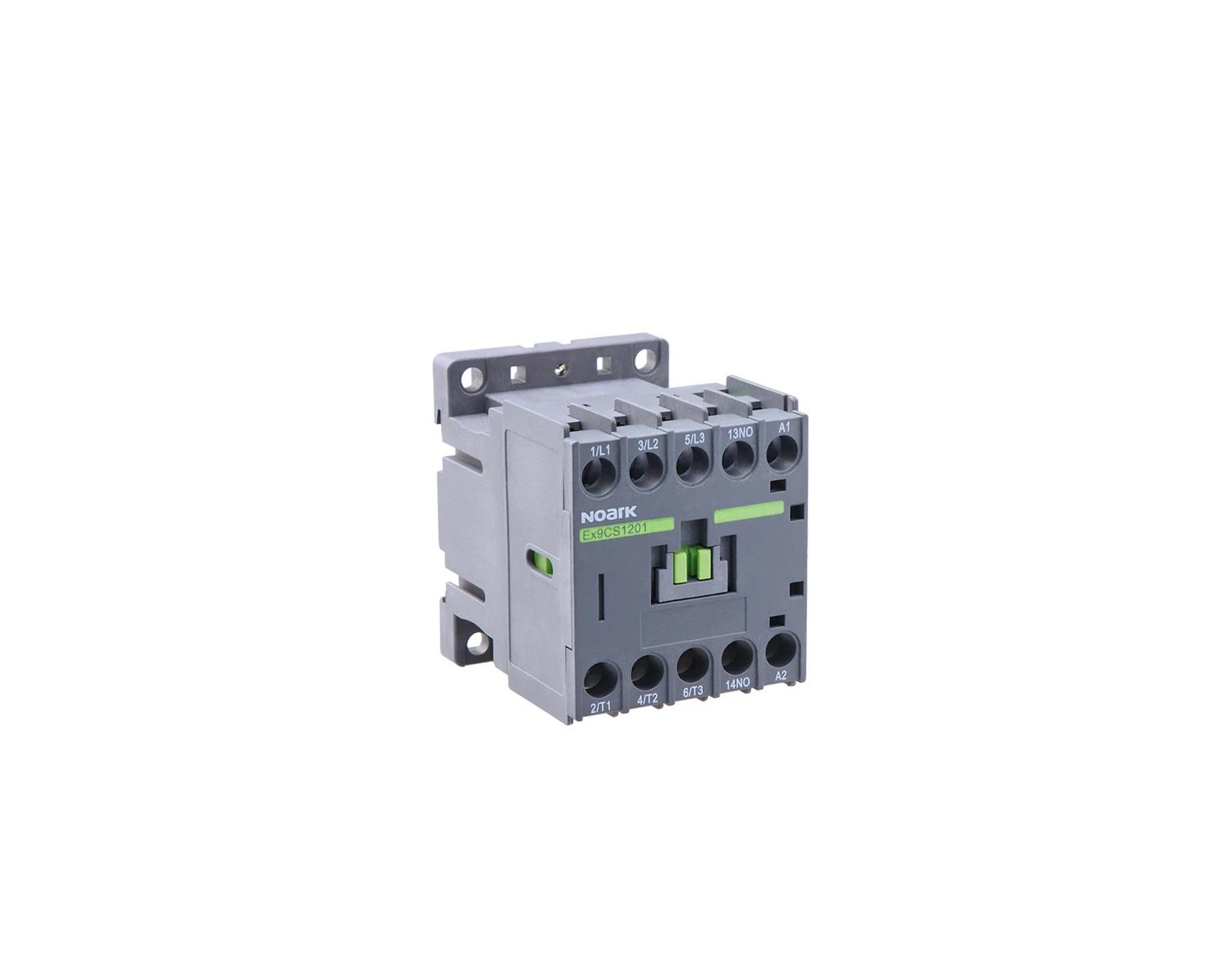

- Contactor Ex9CS09 4P 415V
Contactor Ex9CS09 4P 415V
101028
8592765010292
Ex9CS contactors bring excellent electric parameters in the form of a very compact device. These contactors can be used for both industrial as well as domestic applications. Thermal current and AC-1 load 20 A at 690 V AC allows switching of resistive loads with maximum currents usual for domestic applications. Thanks to compact dimensions, Ex9CS contactors are the ideal solutions for space-limited installations. Contactors are offered as 3 and 4-pole versions and as a 4-pole version with main contacts configuration 2 normally open and 2 normally closed (4P/22).
| Rated control supply voltage Us at AC 50 Hz [V] | 415 |
| Rated control supply voltage Us at DC [V] | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-1, 400 V [A] | 20 |
| Rated operation current Ie at AC-3, 400 V [A] | 9 |
| Rated operation power at AC-3, 400 V [kW] | 4 |
| Rated operation current Ie at AC-4, 400 V [A] | 9 |
| Rated operation power at AC-4, 400 V [kW] | 4 |
| Modular version | Nie |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Cable clamp |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 4 |
| Power loss [W] | 0.8 |
