- Magneetschakelaar Ex9CS12 01 3P 220V

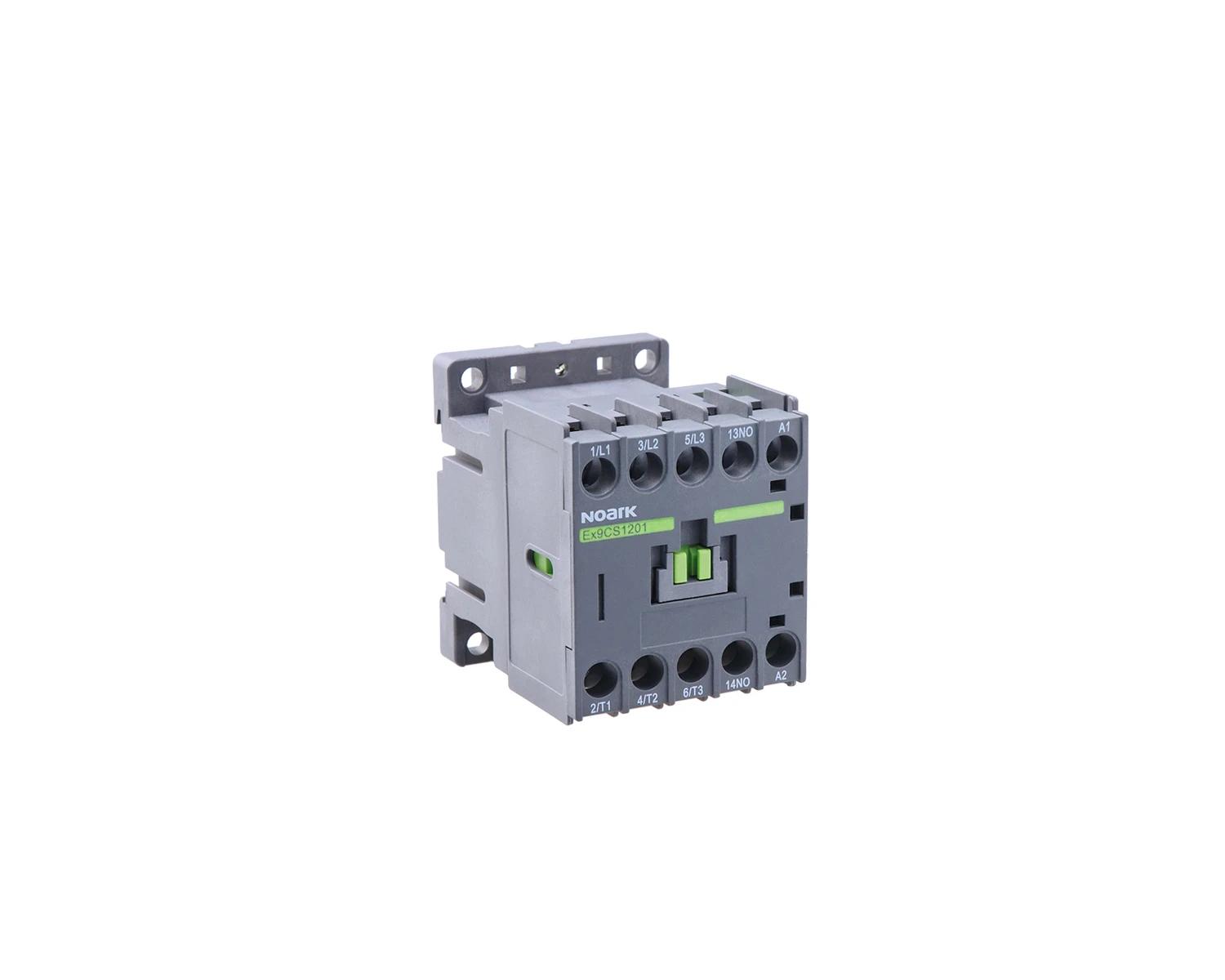

Magneetschakelaar Ex9CS12 01 3P 220V
101057
8592765010582
Ex9CS magneetschakelaars zijn compacte magneetschakelaars voor industriële en woningbouwtoepassingen. Met een nominale stroom tot 20 A bij AC-1 en 690 V AC zijn ze geschikt voor het schakelen van ohmse belastingen. Dankzij de compacte afmetingen zijn ze bijzonder geschikt voor installaties met beperkte ruimte. De magneetschakelaars zijn leverbaar in 3- en 4-polige uitvoeringen en als 4-polige uitvoering met hoofdcontactconfiguratie 2 maak- en 2 verbreekcontacten (4P/22).
| Rated control supply voltage Us at AC 50 Hz [V] | 220 |
| Rated control supply voltage Us at DC [V] | - |
| Voltage type for actuating | AC |
| Rated operation current Ie at AC-1, 400 V [A] | 20 |
| Rated operation current Ie at AC-3, 400 V [A] | 12 |
| Rated operation power at AC-3, 400 V [kW] | 5.5 |
| Rated operation current Ie at AC-4, 400 V [A] | 12 |
| Rated operation power at AC-4, 400 V [kW] | 5.5 |
| Modular version | Nie |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Cable clamp |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 3 |
| Power loss [W] | 0.6 |
