Isolators Ex9I40 can be used as a main switch in wide variety of applications. These switches are tested according to IEC / EN 60947-3 standards and also fulfill the requirements for the isolation functionality. Utilization category AC-22A ensures possibility of switching mixed resistive and inductive loads with low overloads with cos ϕ = 0.65. Subcategory A allows frequent operation. Isolators of line Ex9I40 are produced in modular design with width one module unit for all versions up to
4-pole. It brings very low consumption of space in an installation.

Datasheet Ex9I40

Mounting instruction Ex9I40

EU Declaration of conformity Ex9I40

Catalogue Installation Devices

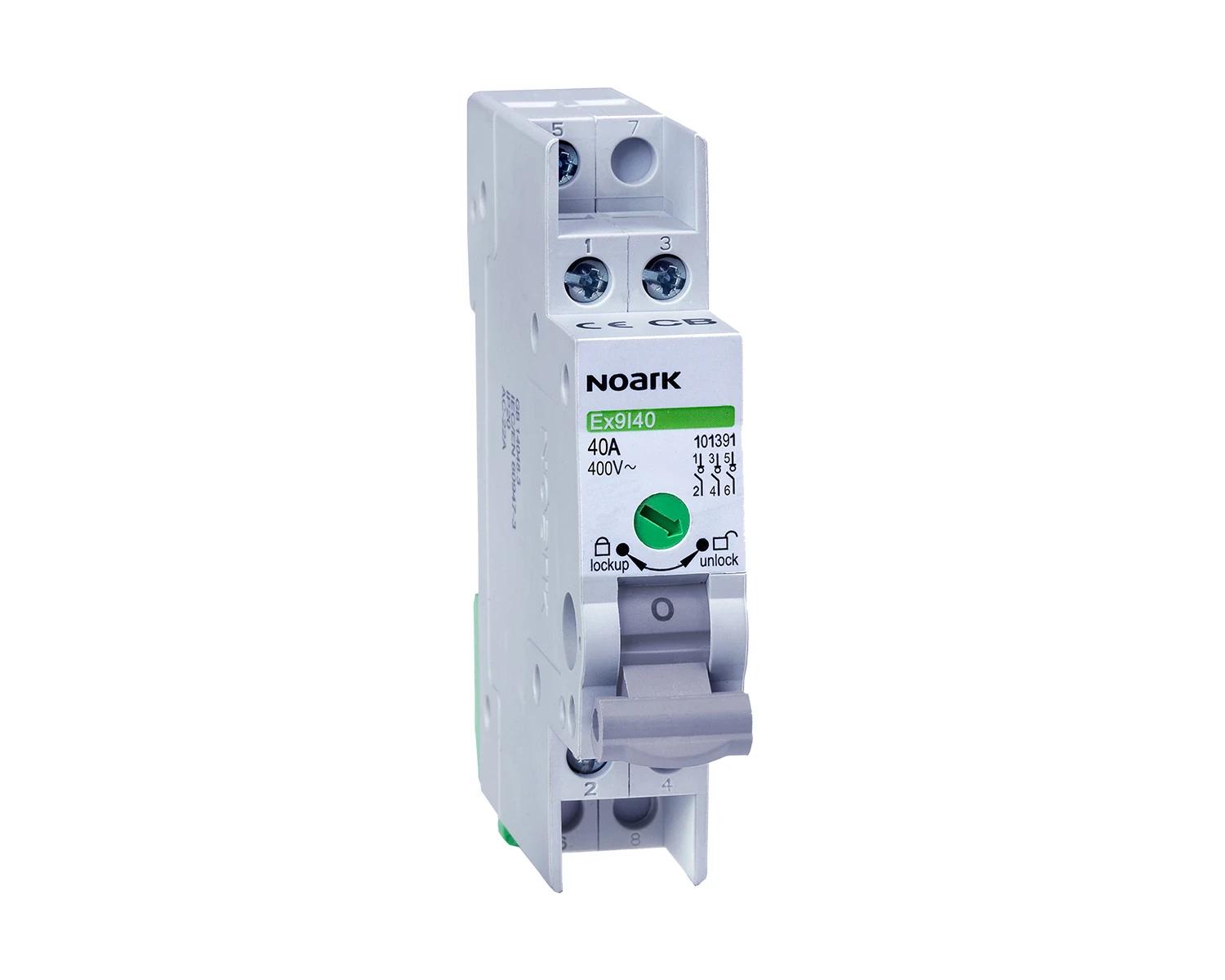

Isolator Ex9I40 3P 40A

Switching function

Number of normally open contacts

Number of normally closed contacts

Number of change-over contacts

Number of poles

Nominal rated current [A]

Nominal rated voltage [V]

Rated switching capacity [kA]

Short-circuit breaking capacity (Icw) [kA]

Voltage type

Forced segregation (according to DIN VDE 0113)

With signal lamp

Colour calotte

Width in number of modular spacings

Built-in depth [mm]

Degree of protection (IP)

Power loss [W]

Switching function	Off switch
Number of normally open contacts	3
Number of normally closed contacts	0
Number of change-over contacts	0
Number of poles	3
Nominal rated current [A]	40
Nominal rated voltage [V]	400
Rated switching capacity [kA]	0.8
Short-circuit breaking capacity (Icw) [kA]	0.48
Voltage type	AC
Forced segregation (according to DIN VDE 0113)	Tak
With signal lamp	Nie
Colour calotte	Grey
Width in number of modular spacings	1
Built-in depth [mm]	80
Degree of protection (IP)	IP20
Power loss [W]	6.9
