PNF groepenkasten zijn geschikt voor inbouw in woningbouwinstallaties. Standaard meegeleverd: behuizing, deur, DIN-rails, N- en PE-klemmen, frontafdekking met module-uitsparing, afdekplaten voor lege posities en montagemateriaal.

Datasheet PNF

Mounting instruction PNF

EU Declaration of conformity PNF

Catalogue Consumer units

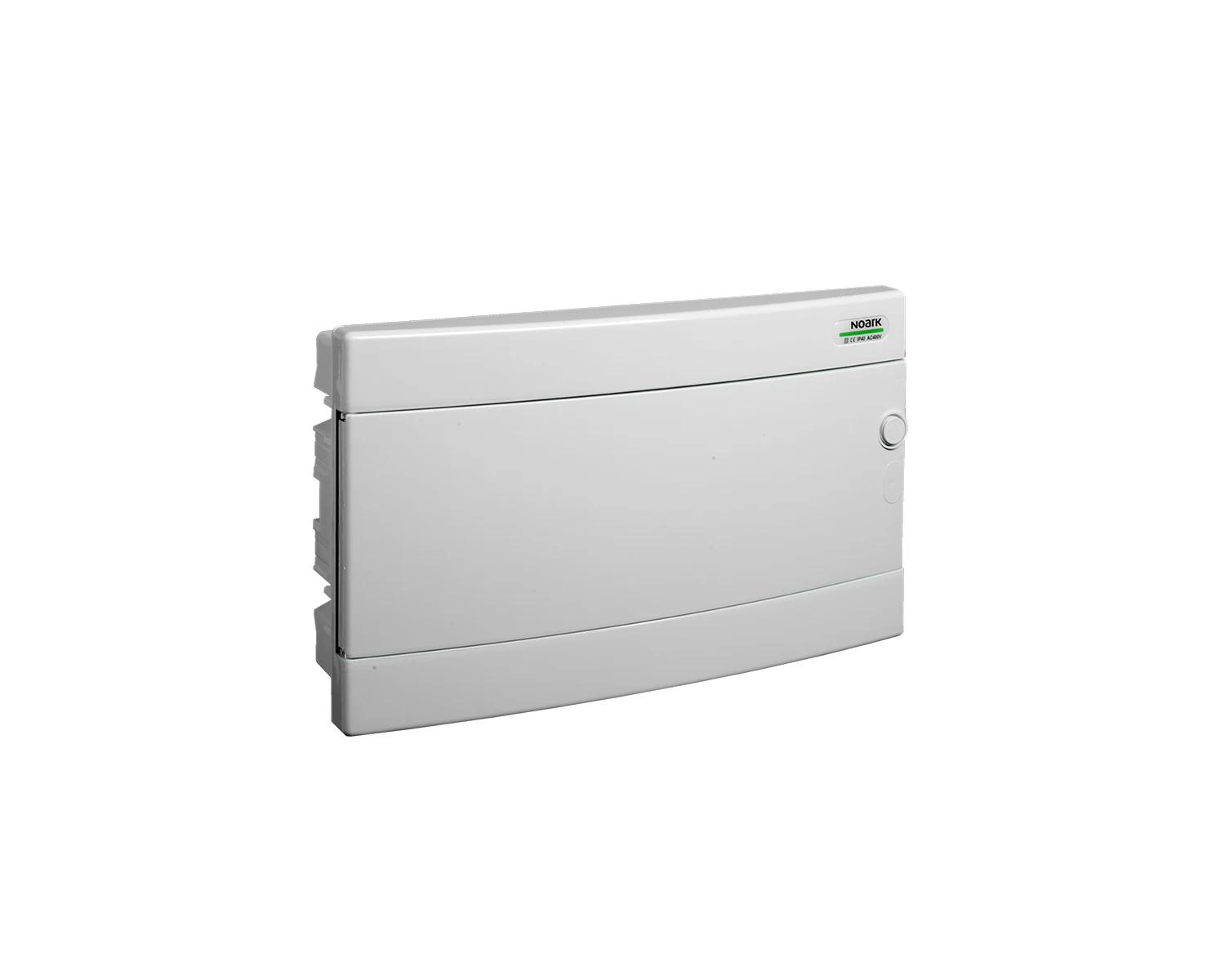

Groepenkast PNF 18W

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Flush mounted (plaster)
Number of rows	1
Width in number of modular spacings	18
Type of cover	Door
Cover model	Closed
Transparent cover/door	Nie
Material housing	Plastic
Height [mm]	227
Width [mm]	393
Depth [mm]	99
Built-in depth [mm]	70
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP40
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	25
