Consumer units PXS are intended mainly for domestic applications. Their design is suitable for surface
mounting. Scope of delivery consists of enclosure, device DIN rails, N + PE terminals, front cover with device
cutout, cover for empty place, mounting material. Delivered without door.

Datasheet PXS

Mounting instruction PXS

EU Declaration of conformity PXS

Catalogue Consumer units

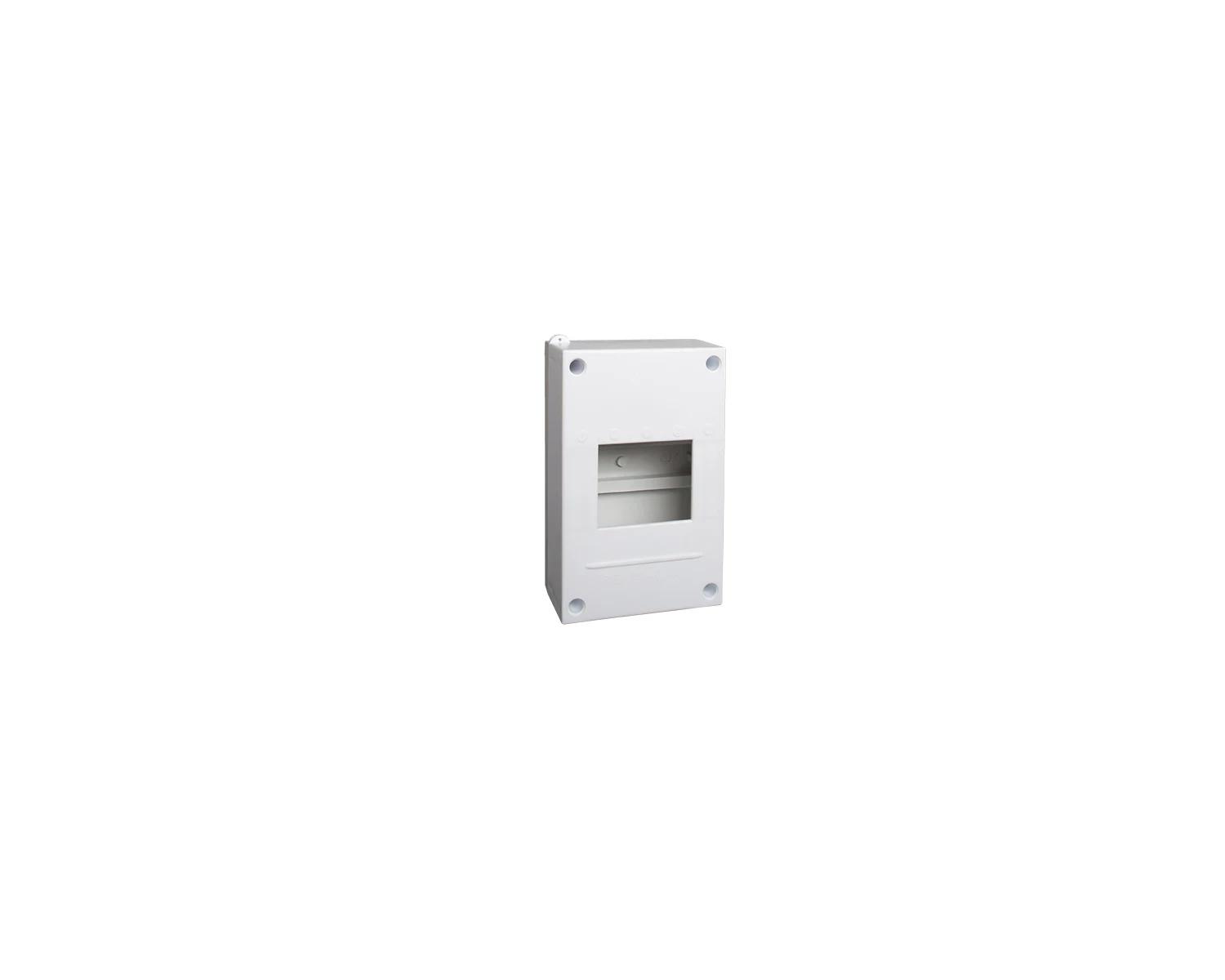

Consumer unit PXS 3

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Surface mounting
Number of rows	1
Width in number of modular spacings	3
Type of cover	Cover
Cover model	Closed
Transparent cover/door	Nie
Material housing	Plastic
Height [mm]	155
Width [mm]	97
Depth [mm]	57
Built-in depth [mm]	0
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP30
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	14
