Consumer units PXS are intended mainly for domestic applications. Their design is suitable for surface
mounting. Scope of delivery consists of enclosure, device DIN rails, N + PE terminals, front cover with device
cutout, cover for empty place, mounting material. Delivered without door.

Datasheet PXS

Mounting instruction PXS

EU Declaration of conformity PXS

Catalogue Consumer units

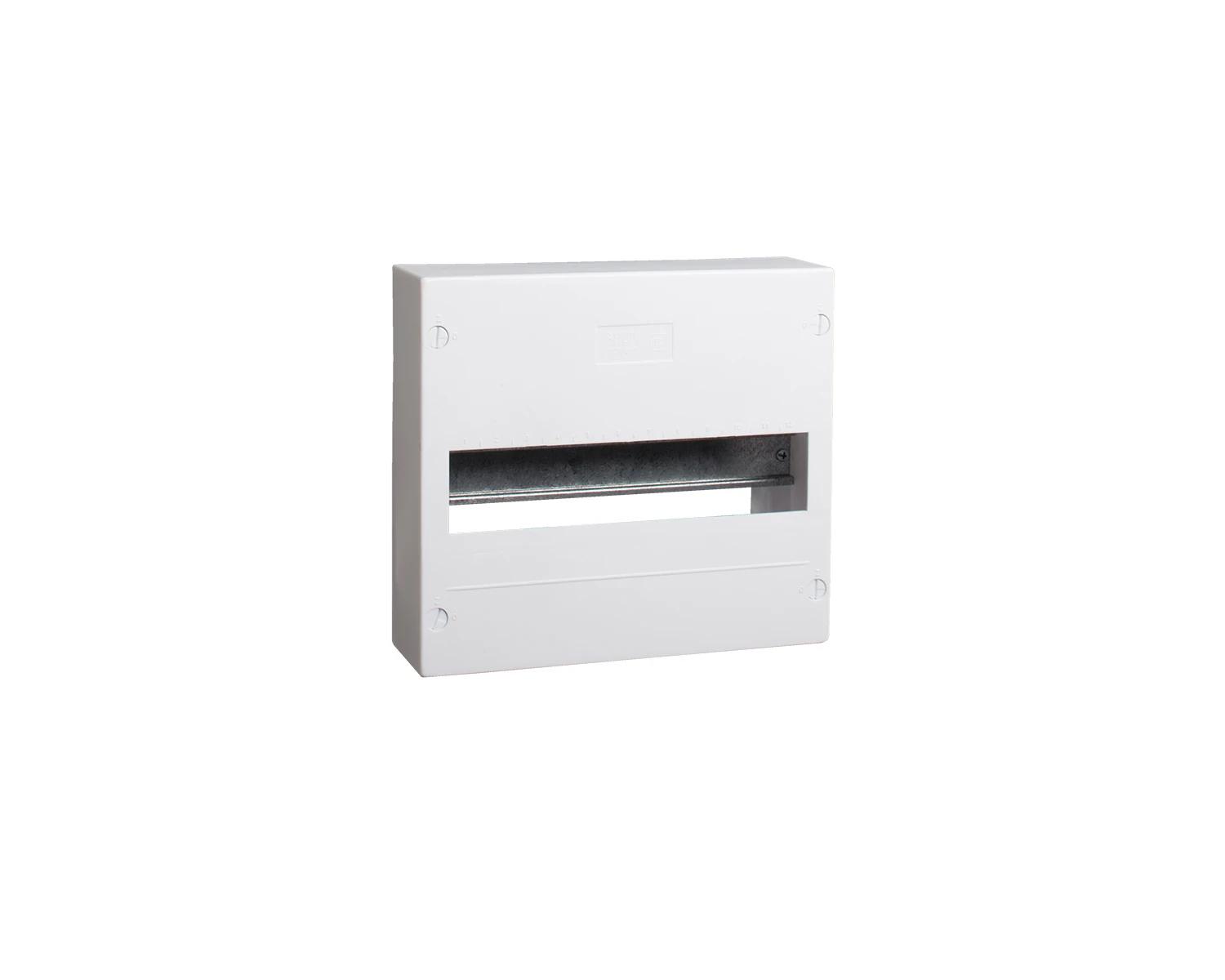

Consumer unit PXS 12

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Surface mounting
Number of rows	1
Width in number of modular spacings	12
Type of cover	Cover
Cover model	Closed
Transparent cover/door	Nie
Material housing	Plastic
Height [mm]	224
Width [mm]	250
Depth [mm]	70
Built-in depth [mm]	0
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP30
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	22
