PDB 1P CU/AL 1+1x6 125/100A

103781
8592765037824

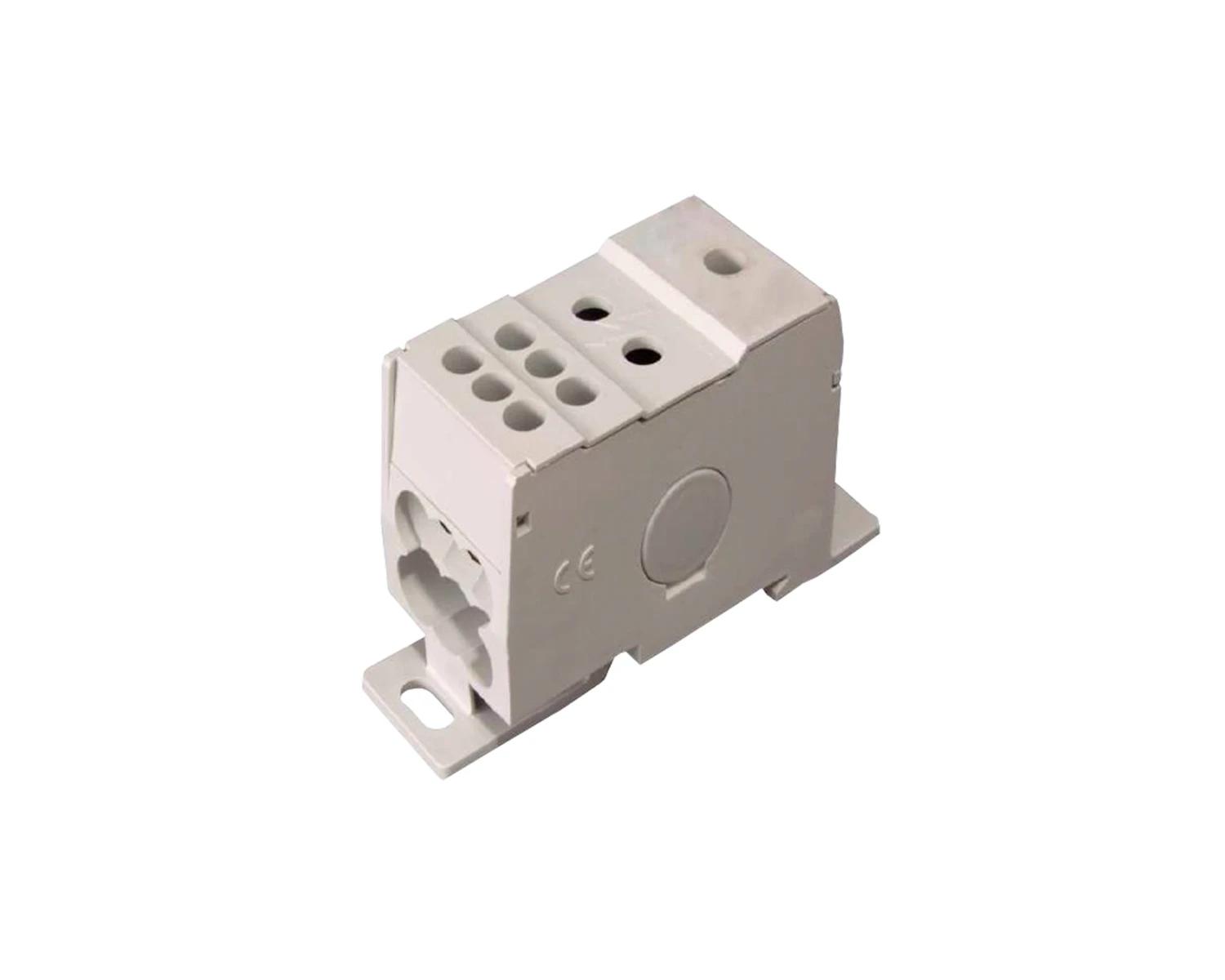

Power Distribution Block PDB 1P CU/AL 1+1x6 125/100A

Znajdź sklep
Height [mm]74.8
Width [mm]27
Depth [mm]46.8
Max. rated current [A]125
Number of poles1
Conductor cross section flexible (fine-strand) with cable end sleeve [mm²]2,5 - 35
Conductor cross section solid (solid, stranded) [mm²]2,5 - 35
Number of clamp positions per pole8
With PE-railNie
With N-railNie
