PDB 1P CU/AL 1x2+5+4 250/200A

103785
8592765037862

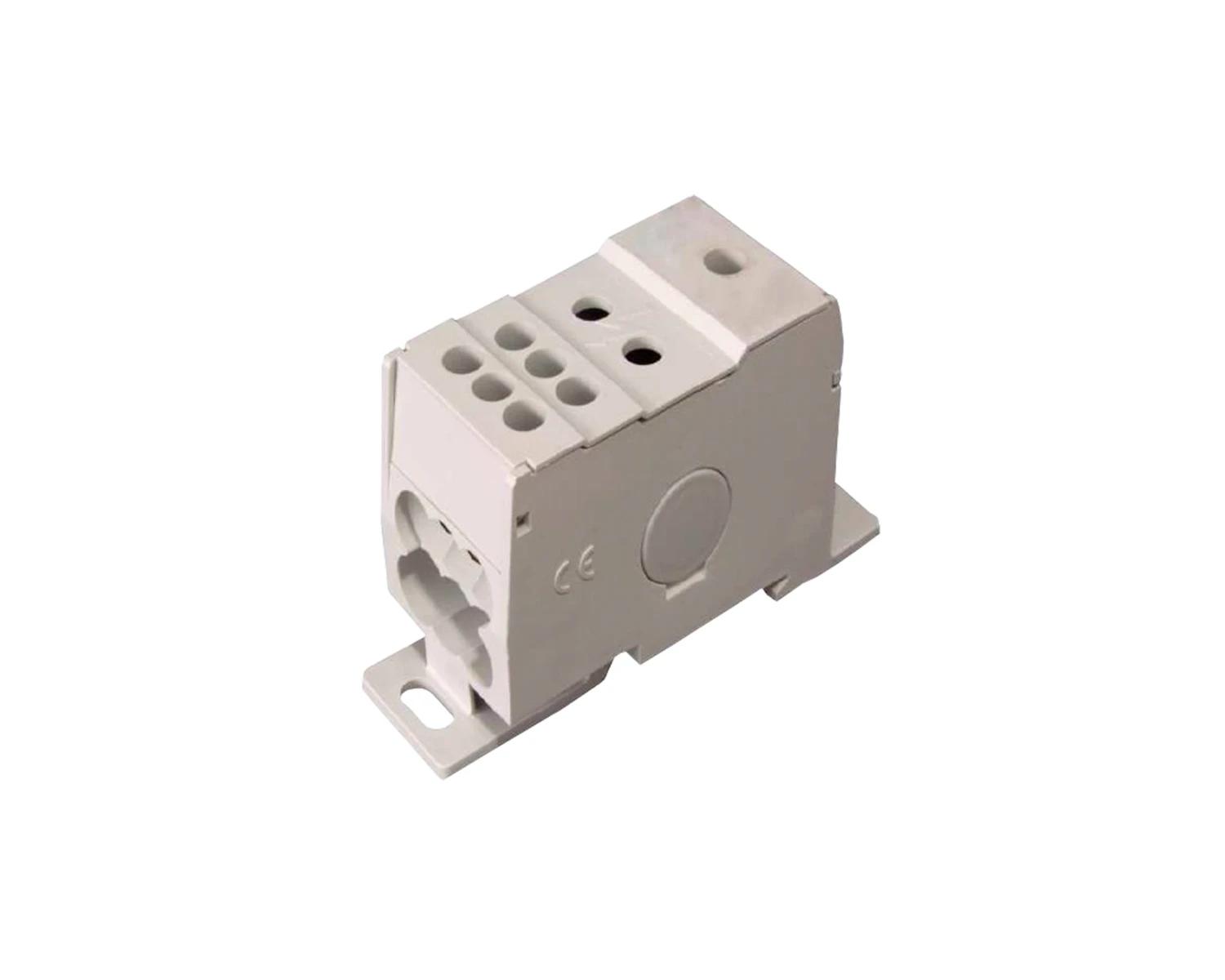

Power Distribution Block PDB 1P CU/AL 1x2+5+4 250/200A

Znajdź sklep
Height [mm]95.8
Width [mm]44.6
Depth [mm]49.5
Max. rated current [A]250
Number of poles1
Conductor cross section flexible (fine-strand) with cable end sleeve [mm²]1,5-120
Conductor cross section solid (solid, stranded) [mm²]1,5-120
Number of clamp positions per pole12
With PE-railNie
With N-railNie
