- PDB 1P CU 1x2+5+4 400A
PDB 1P CU 1x2+5+4 400A
103786
8592765037879

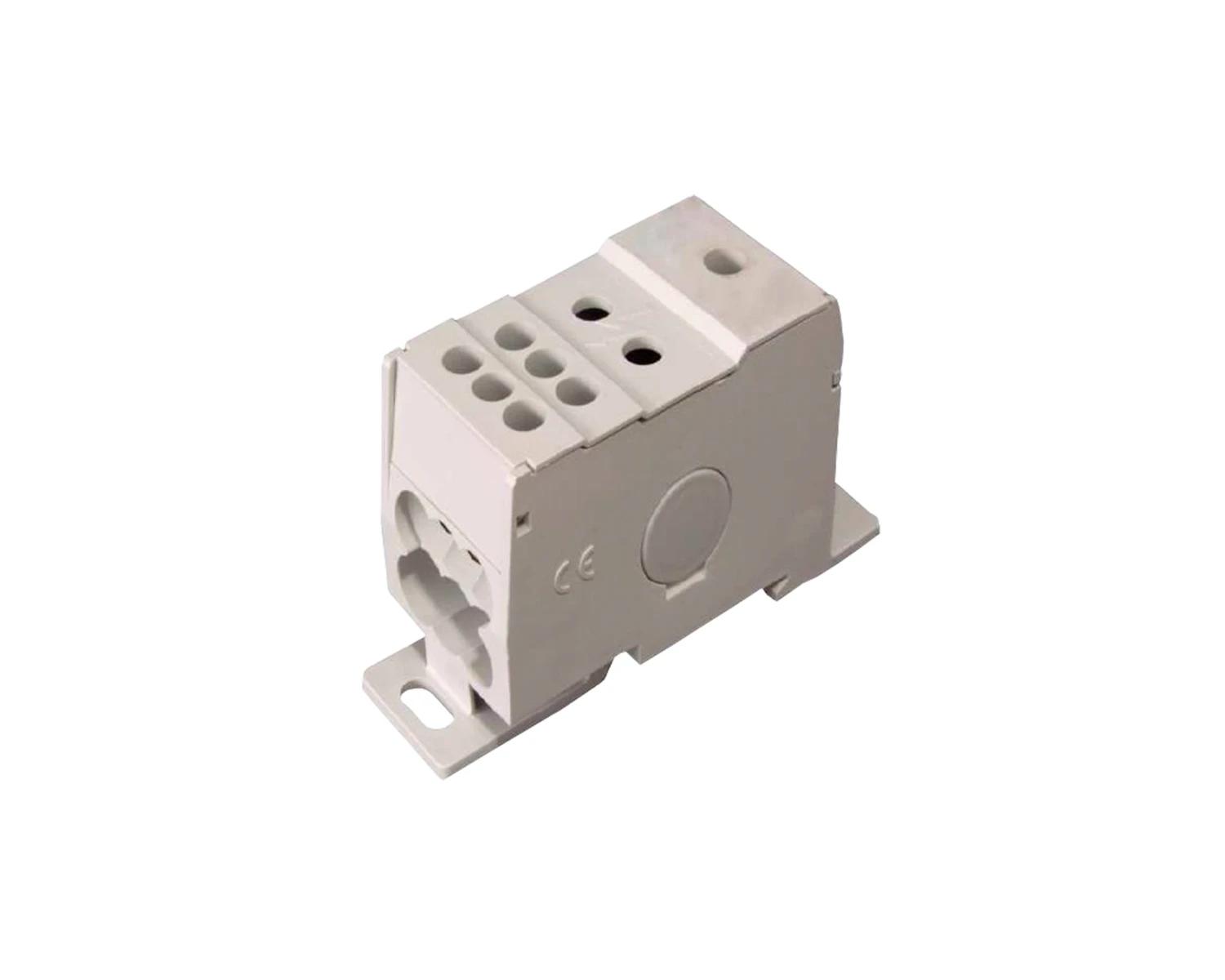

Power Distribution Block PDB 1P CU 1x2+5+4 400A
| Height [mm] | 95.8 |
| Width [mm] | 44.6 |
| Depth [mm] | 49.5 |
| Max. rated current [A] | 400 |
| Number of poles | 1 |
| Conductor cross section flexible (fine-strand) with cable end sleeve [mm²] | 1,5-185 |
| Conductor cross section solid (solid, stranded) [mm²] | 1,5-185 |
| Number of clamp positions per pole | 12 |
| With PE-rail | Nie |
| With N-rail | Nie |
