PDB 1P CU/AL 1x2+5+4 400/300A

103787
8592765037886

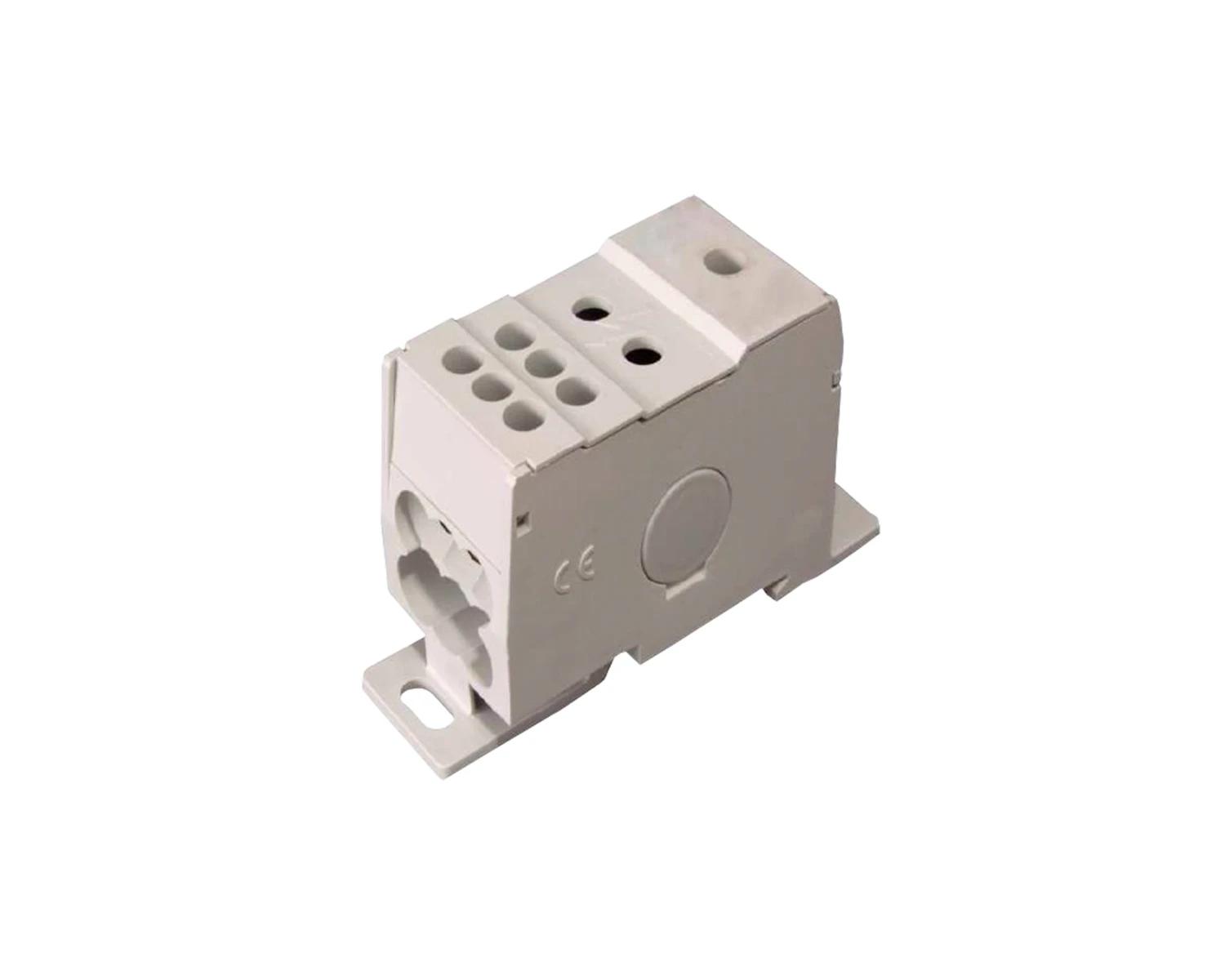

Power Distribution Block PDB 1P CU/AL 1x2+5+4 400/300A

Znajdź sklep
Height [mm]95.8
Width [mm]44.6
Depth [mm]49.5
Max. rated current [A]400
Number of poles1
Conductor cross section flexible (fine-strand) with cable end sleeve [mm²]1,5-185
Conductor cross section solid (solid, stranded) [mm²]1,5-185
Number of clamp positions per pole12
With PE-railNie
With N-railNie
