PDB 3P CU 1x6 175A

103788
8592765037893

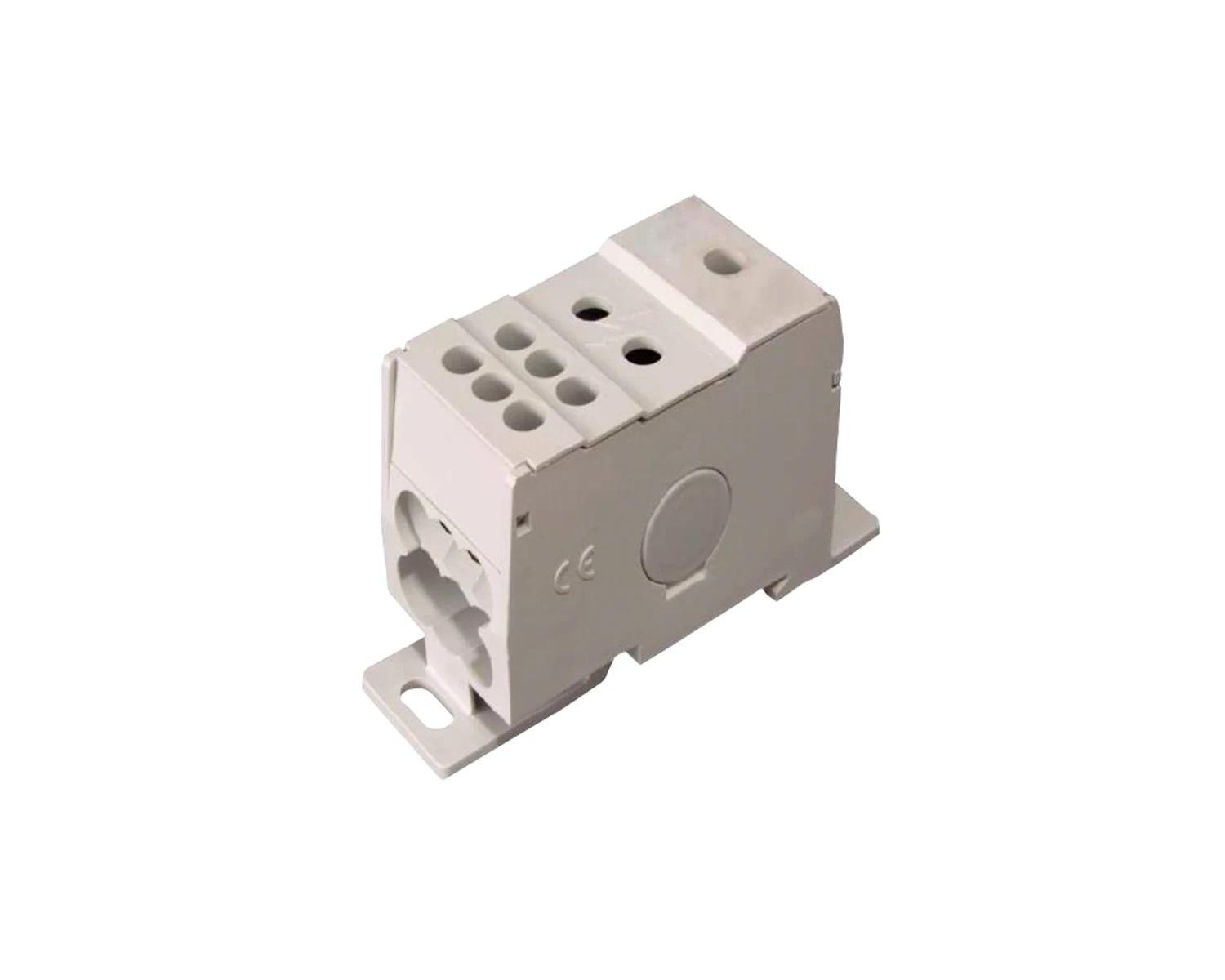

Power Distribution Block PDB 3P CU 1x6 175A

Znajdź sklep
Height [mm]71
Width [mm]80
Depth [mm]43
Max. rated current [A]175
Number of poles3
Conductor cross section flexible (fine-strand) with cable end sleeve [mm²]2,5 - 70
Conductor cross section solid (solid, stranded) [mm²]2,5 - 70
Number of clamp positions per pole7
With PE-railNie
With N-railNie
