- PDB 1P CU/AL 1x6 400/350A
PDB 1P CU/AL 1x6 400/350A
103795
8592765037961

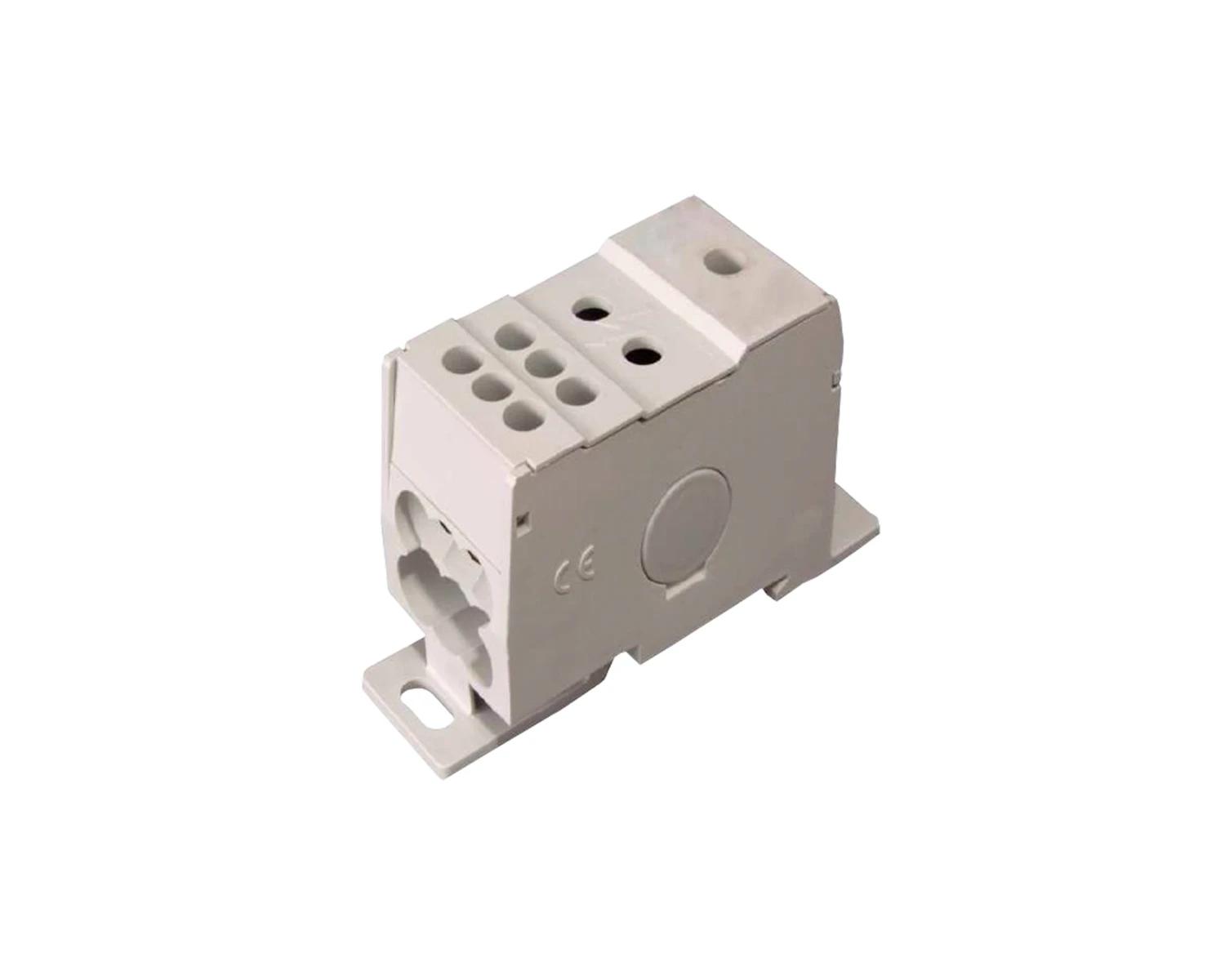

Power Distribution Block PDB 1P CU/AL 1x6 400/350A
| Height [mm] | 103 |
| Width [mm] | 44.4 |
| Depth [mm] | 50.2 |
| Max. rated current [A] | 400 |
| Number of poles | 1 |
| Conductor cross section flexible (fine-strand) with cable end sleeve [mm²] | 50 - 240 |
| Conductor cross section solid (solid, stranded) [mm²] | 50 - 240 |
| Number of clamp positions per pole | 3 |
| With PE-rail | Nie |
| With N-rail | Nie |
