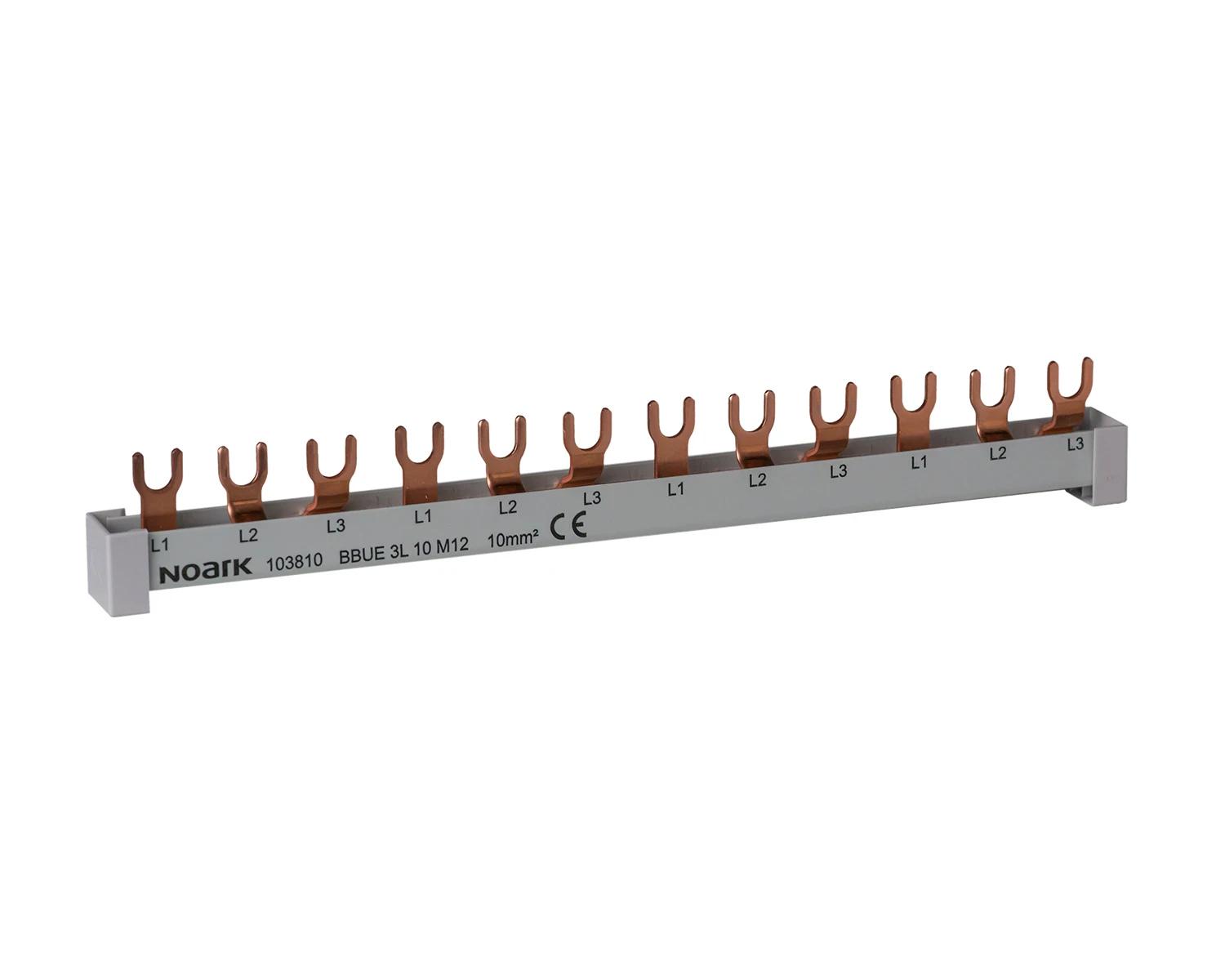

- Busbar BBUE 3L 10 M12
| Number of phases | 3 |
| Number of poles | 3 |
| Suitable for number of devices | 12 |
| Pitch dimensions | 18 |
| Cross section [mm²] | 10 |
| Length [mm] | 212 |
| Number of modular spacings | 12 |
| Rated permanent current Iu [A] | 63 |
| Type of electric connection | Fork |
| Insulated | Tak |
| Max. rated operation voltage Ue [V] | 400 |
| Suitable for devices with N-busbar | Nie |
| Suitable for devices with auxiliary switch | Nie |
