Consumer units PNF-HW are intended mainly for domestic applications. Their design is suitable for flush mounting. Dual fixing system allows using also for hollow walls. Tested with glow wire test at 850°C. Scope of delivery consists of enclosure, door, device DIN rails, N + PE terminals, front cover with device cutout, cover for empty place and mounting material.

Mounting instruction PNF

Datasheet PNF-HW

EU Declaration of conformity PNF-HW

Catalogue Consumer units

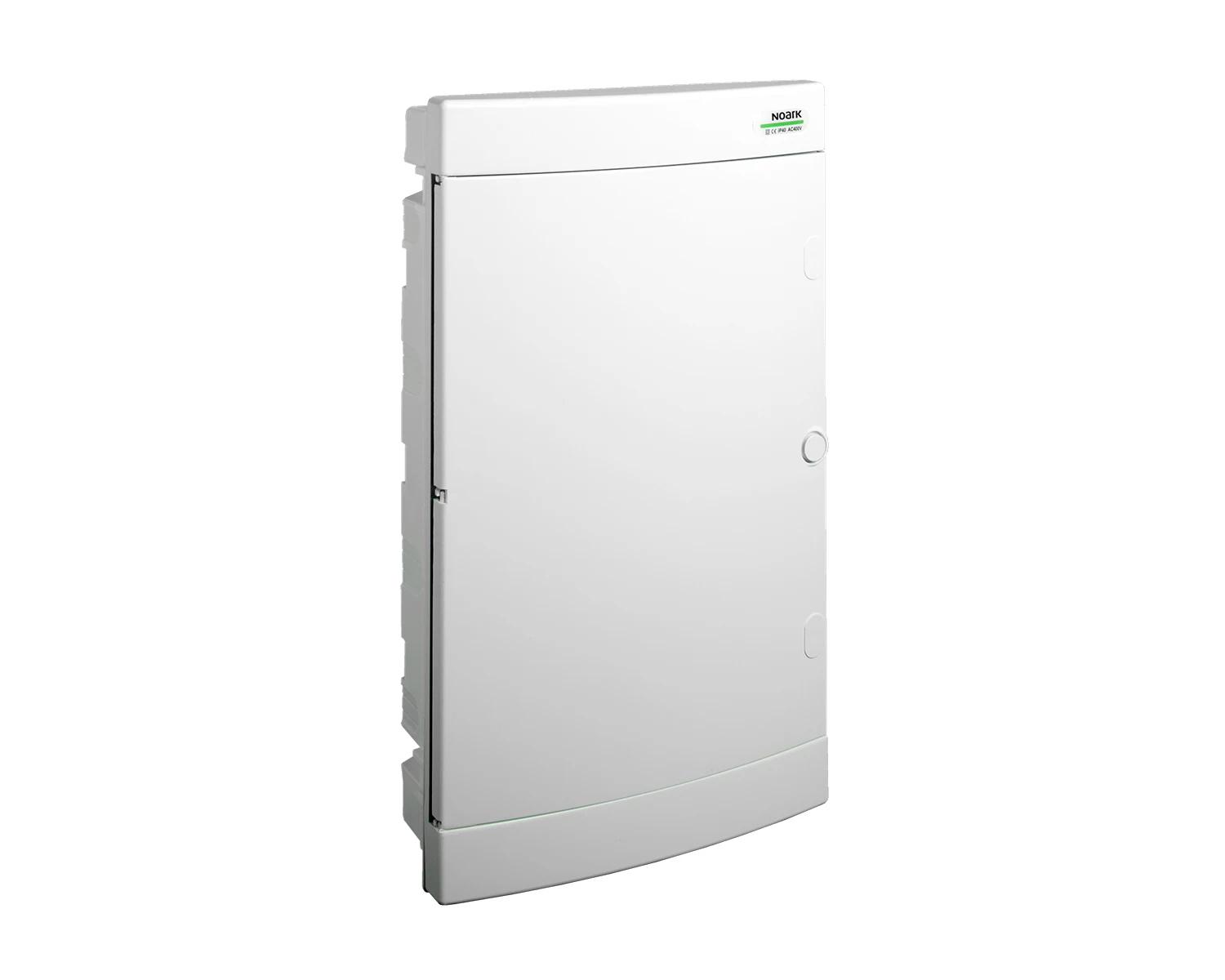

Consumer unit PNF-HW 3x18W

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Hollow wall
Number of rows	3
Width in number of modular spacings	18
Type of cover	Door
Cover model	Closed
Transparent cover/door	Nie
Material housing	Plastic
Height [mm]	511
Width [mm]	393
Depth [mm]	106
Built-in depth [mm]	70
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP40
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	35
