Ex9R overload thermal relays contactors are designed for protection of motors mainly. These relays can be either combined directly with contactors of Ex9CS and Ex9C series or used as a stand-alone device with AD5 adaptor. Relays are available in three frame sizes for rated non-reduced currents from 0.16 — 100 A.

Datasheet Ex9R500

Mounting instruction Ex9R185

EU Declaration of conformity Ex9R185

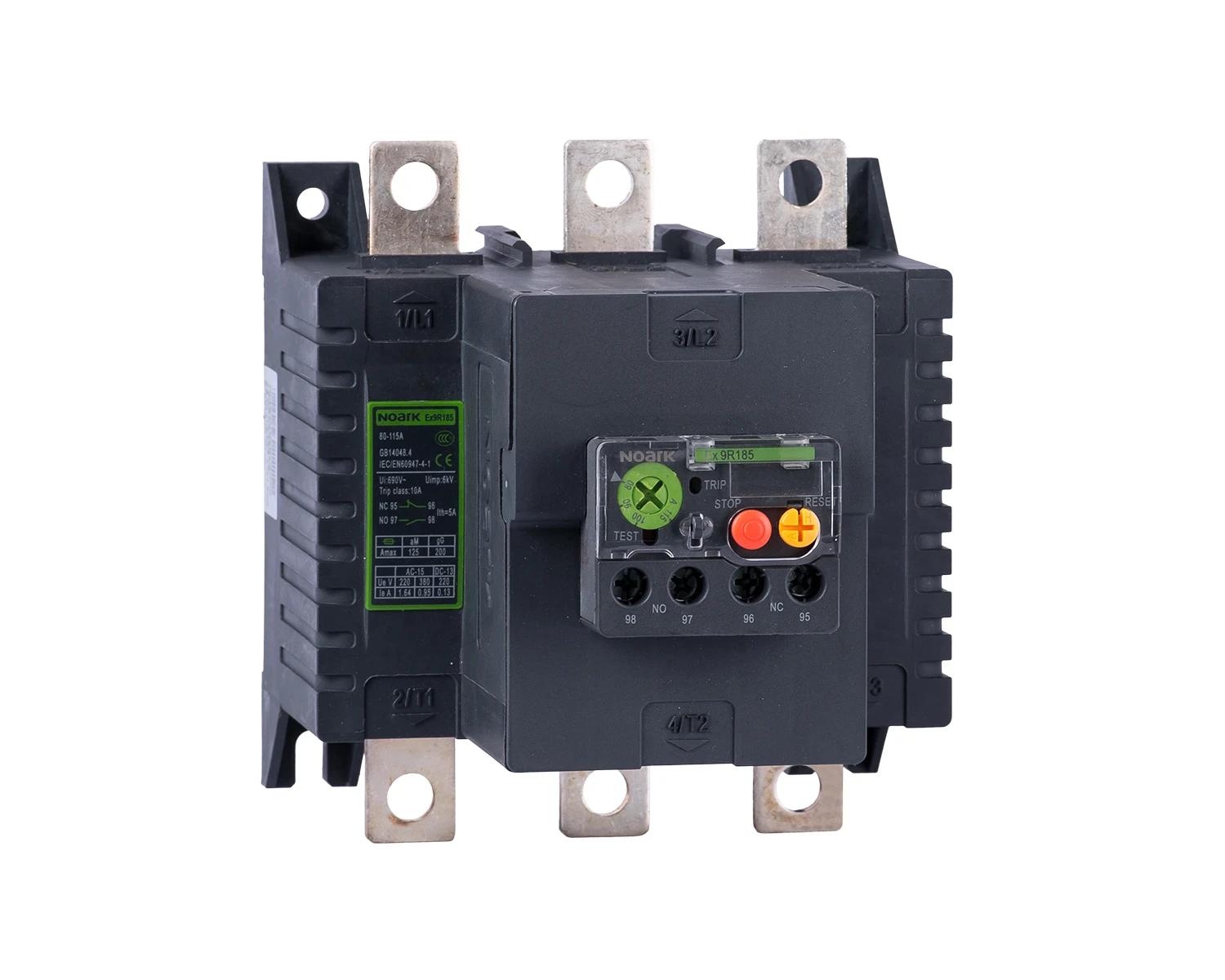

Overload thermal relays contactor Ex9R185 150A

Adjustable current range [A]

Max. rated operation voltage Ue [V]

Mounting method

Type of electrical connection of main circuit

Number of auxiliary contacts as normally closed contact

Number of auxiliary contacts as normally open contact

Release class

Adjustable current range [A]	110 - 150
Max. rated operation voltage Ue [V]	690
Mounting method	Direct attachment/single positioning
Type of electrical connection of main circuit	Other
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Release class	CLASS 10 A
