MF-verdelers zijn geschikt voor inbouwtoepassingen in de woningbouw. Dankzij het dubbele bevestigingssysteem zijn ze eenvoudig te monteren in holle wandconstructies. De verdelers voldoen aan de gloeidraadtest bij 850 °C. Het in hoogte verstelbare metalen frontframe compenseert oneffenheden in het wandoppervlak.

Datasheet PMF

Mounting instruction PMF

EU Declaration of conformity PMF

Catalogue Consumer units

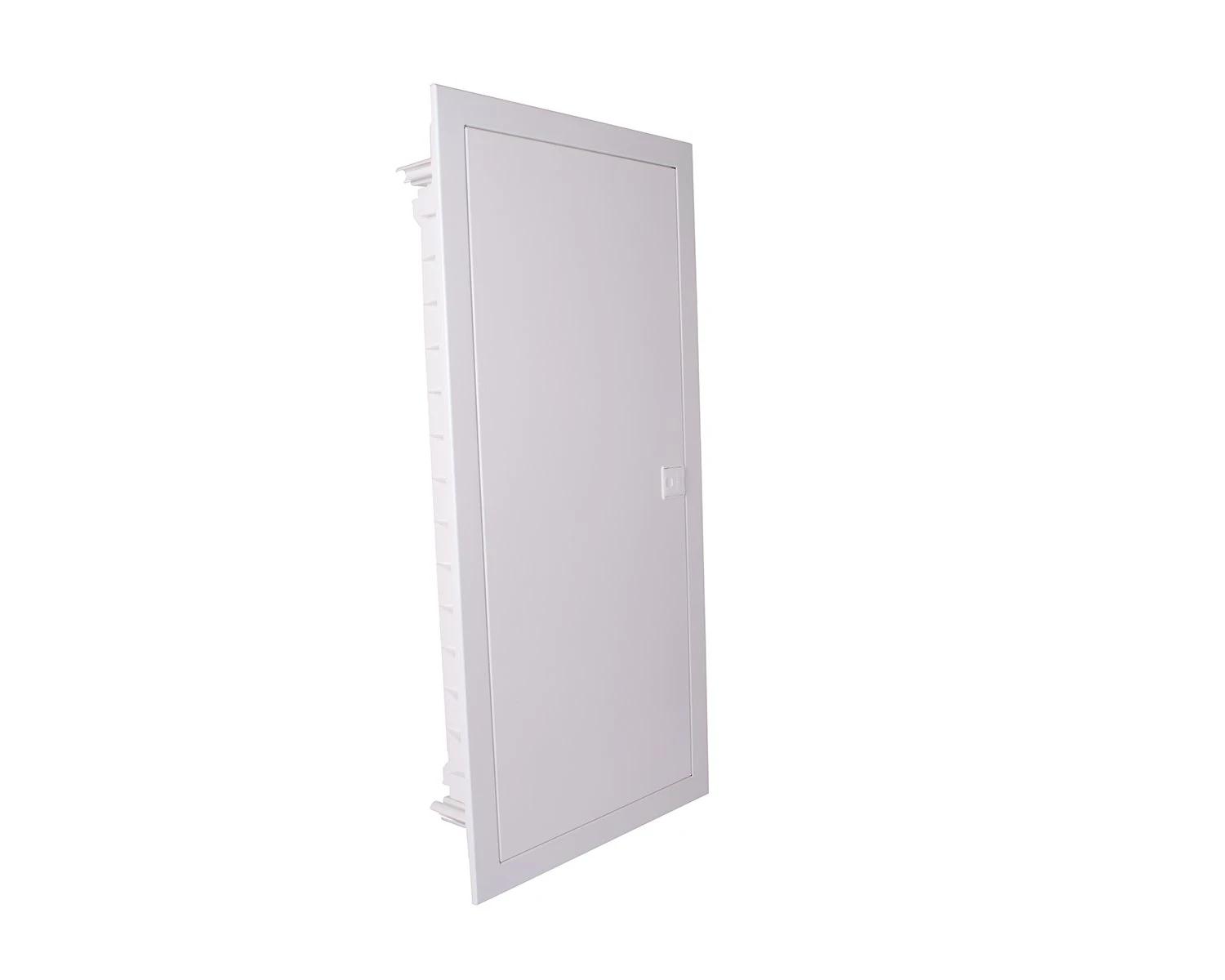

Groepenkast PMF 60

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Hollow wall
Number of rows	5
Width in number of modular spacings	12
Type of cover	Door
Cover model	Closed
Transparent cover/door	Nie
Material housing	Steel
Height [mm]	842
Width [mm]	346
Depth [mm]	88
Built-in depth [mm]	88
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9016
Degree of protection (IP)	IP40
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	70
