Consumer units PMF and PMF- MM are intended mainly for domestic applications. Theirs design is suitable for flush mounting. Dual fixing system	allows using also for hollow	walls. Tested with glow wire test at 850°C. The height-adjustable front metal frame allows to compensate wall surface imperfections.
The units are available in versions from 1 up to 5 mounting plates. Degree of protection is IP40 for PMF and IP30 for PMF-MM, degree of protection against mechanical impact IK06.
Scope of delivery consists of enclosure, metal frame with perforated door, mounting plate, mounting material and instructions.

Datasheet PMF-MM

Mounting instruction PMF-MM

EU Declaration of conformity PMF-MM

Catalogue Consumer units

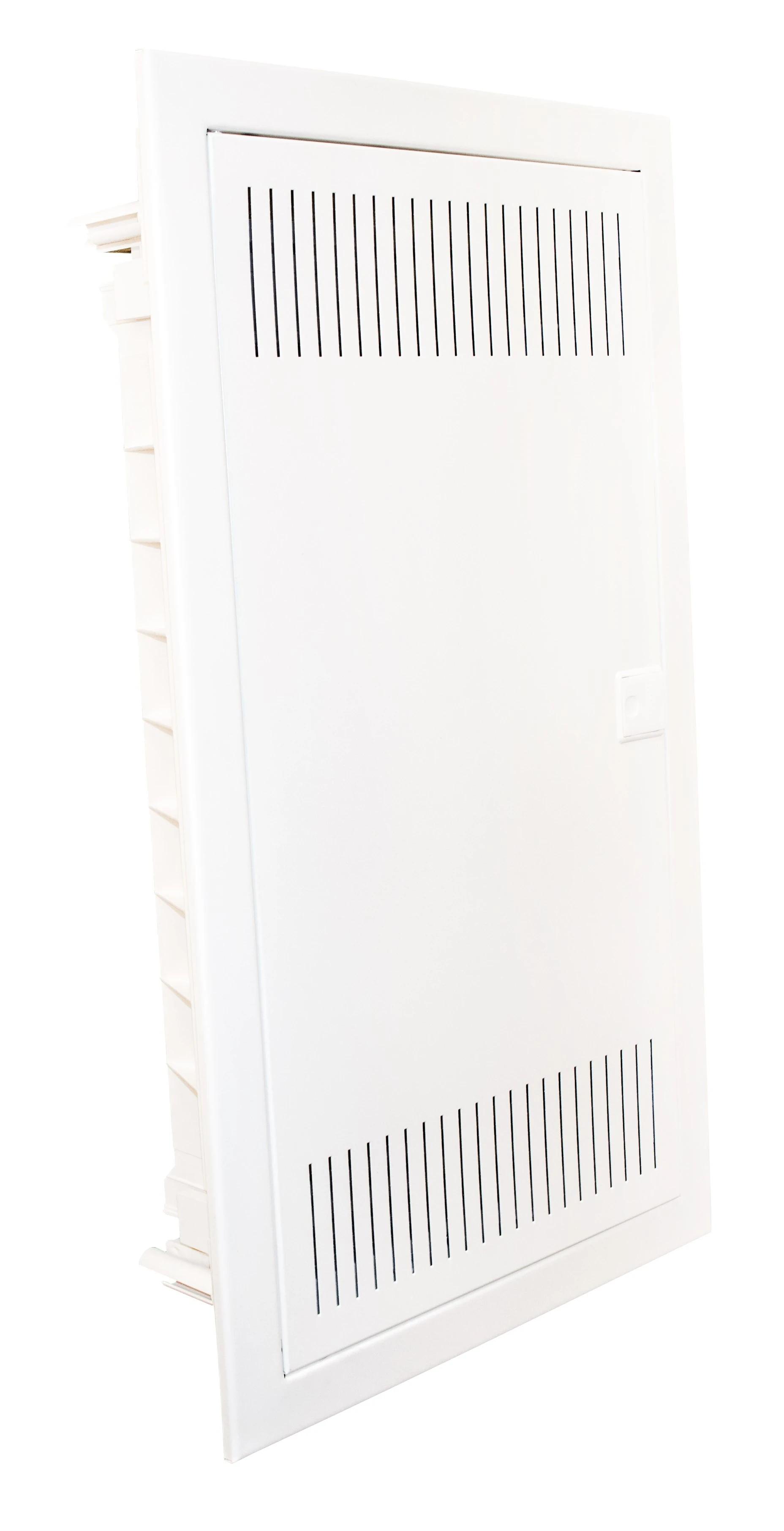

Consumer unit PMF-MM 36

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Hollow wall
Number of rows	3
Width in number of modular spacings	12
Type of cover	Door
Cover model	With notch
Transparent cover/door	Nie
Material housing	Steel
Height [mm]	592
Width [mm]	346
Depth [mm]	88
Built-in depth [mm]	88
DIN-rail	Tak
With mounting plate	Tak
Extension possible	Tak
EMC-version	Nie
Colour	White
RAL-number	9016
Degree of protection (IP)	IP30
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	50
