Consumer units PNS-SD are intended mainly for domestic applications. Theirs design is suitable for surface
mounting. Scope of delivery consists of enclosure, door, device DIN rails, N + PE terminals, front cover with
device cutout, cover for empty place and mounting material.

Datasheet PNS-SD

Mounting instruction PNS-SD

EU Declaration of conformity PNS-SD

Catalogue Consumer units

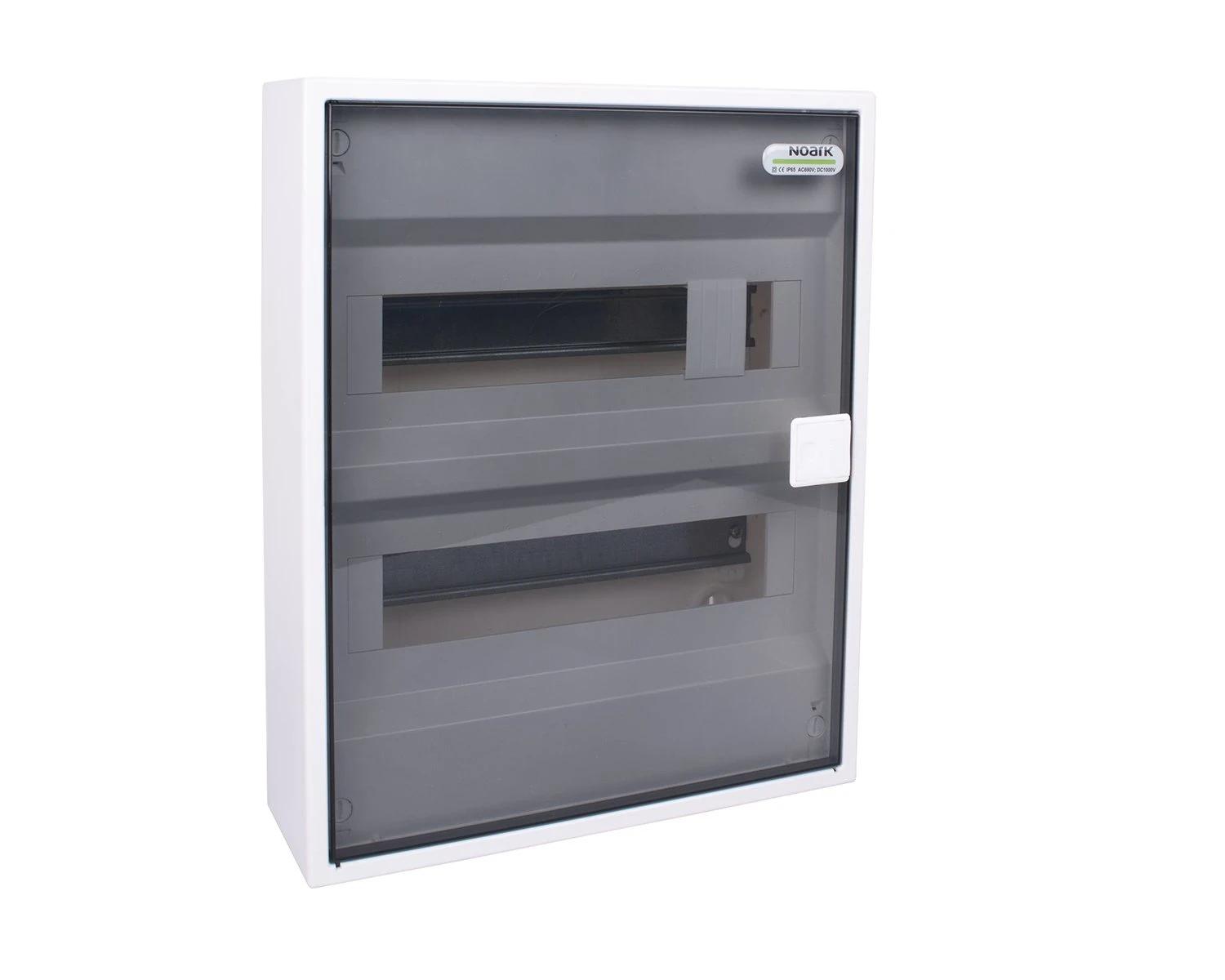

Consumer unit PNS-SD 12T

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Surface mounting
Number of rows	1
Width in number of modular spacings	12
Type of cover	Door
Cover model	Closed
Transparent cover/door	Tak
Material housing	Plastic
Height [mm]	251
Width [mm]	310
Depth [mm]	96
Built-in depth [mm]	0
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP40
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	30
