Nudimo širok spektar strujnih transformatora sa čvrstim i podeljenim jezgrom, koji su namenjeni merenju primarnih struja i proizvode proporcionalno sekundarni strujni signal. Pogodni su za ugradnju u kombinaciji sa pametnim brojilima Ex9EMS 3P 4M CT i Ex9EM 3P 4M CT 1T.

Strujni transformatori CT sa podejenim jezgrom su namenjeni za ugradnju u postojeća postrojenja gde uklanjanje sabirnica / kablovskih veza sprečava instaliranje standardnih strujnih transformatora.

Tehnički podaci CT

Sertifikat o usaglašenosti CT

Katalog Instalacioni- Modularni Uređaji

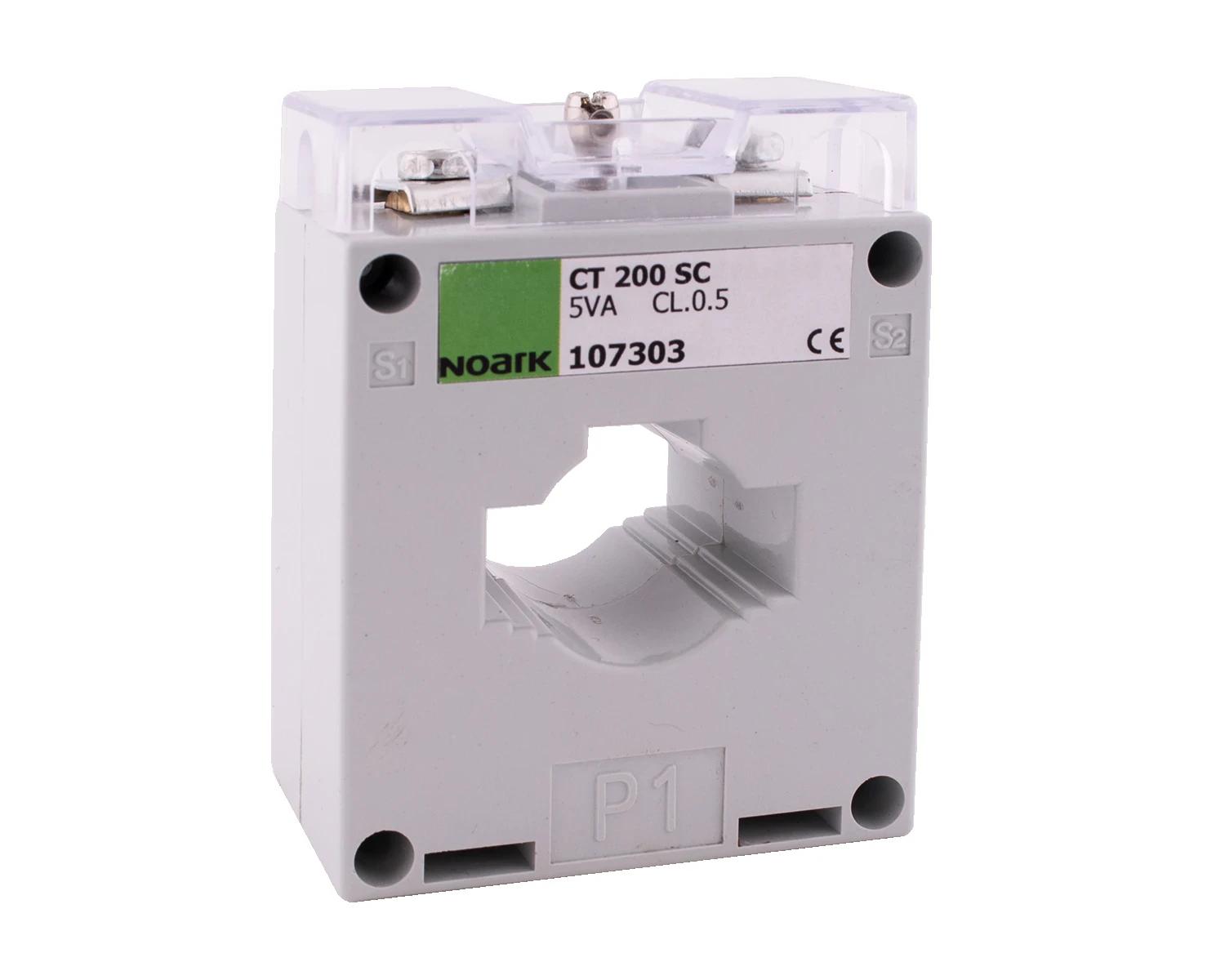

CT 5/150A SC

Model

Primary rated current [A]

Secondary rated current [A]

Secondary rated apparent power [VA]

Accuracy class

Over current limiting factor

Calibrated

With shock protection

Height opening [mm]

Width opening [mm]

Opening diameter [mm]

Snap mounting

With copper rail

Secondary connection

Number of primary inputs

Model	Through-feed current converter
Primary rated current [A]	150
Secondary rated current [A]	5
Secondary rated apparent power [VA]	5
Accuracy class	0.5
Over current limiting factor	FS 10
Calibrated	Tak
With shock protection	Nie
Height opening [mm]	22
Width opening [mm]	22
Opening diameter [mm]	22
Snap mounting	Nie
With copper rail	Nie
Secondary connection	Screw connection
Number of primary inputs	1
