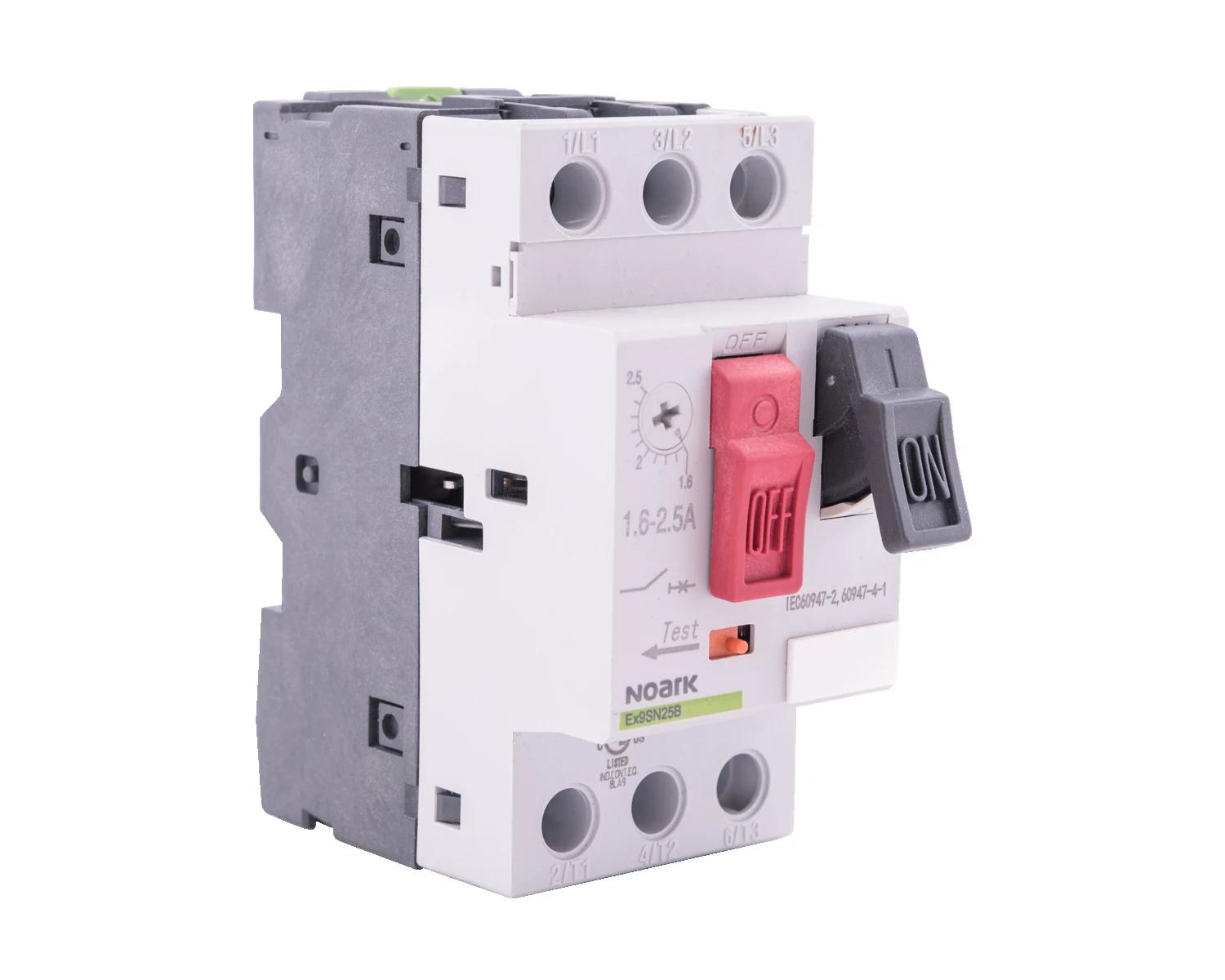

Motorbeveiligingsschakelaar Ex9SN25B1.6A
108945
8592765089458
Motorbeveiligingsschakelaars Ex9S schakelen motoren handmatig in en uit en bieden zekeringloze beveiliging tegen kortsluiting en fase-uitval. Bij kortsluiting schakelen ze snel af, waardoor schade aan motor en installatie wordt beperkt. Motorbeveiligingsschakelaars kunnen worden gecombineerd met contactoren en thermische overbelastingsrelais.
| Overload release current setting [A] | 1-1,6 |
| Adjustment range undelayed short-circuit release [A] | 22.5 |
| Thermal protection | Tak |
| Phase failure sensitive | Tak |
| Switch off technique | Thermomagnetic |
| Rated operating voltage [V] | 230-690 |
| Rated permanent current Iu [A] | 1.6 |
| Rated operation power at AC-3, 230 V [kW] | - |
| Rated operation power at AC-3, 400 V [kW] | 0.37 |
| Type of electrical connection of main circuit | Frame clamp |
| Type of control element | Push button |
| Device construction | Complete device in housing |
| With integrated auxiliary switch | Nie |
| With integrated under voltage release | Nie |
| Number of poles | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC [kA] | 100 |
| Degree of protection (IP) | IP20 |
| Height [mm] | 81 |
| Width [mm] | 44.5 |
| Depth [mm] | 91.3 |
| Power loss [W] | 9 |
