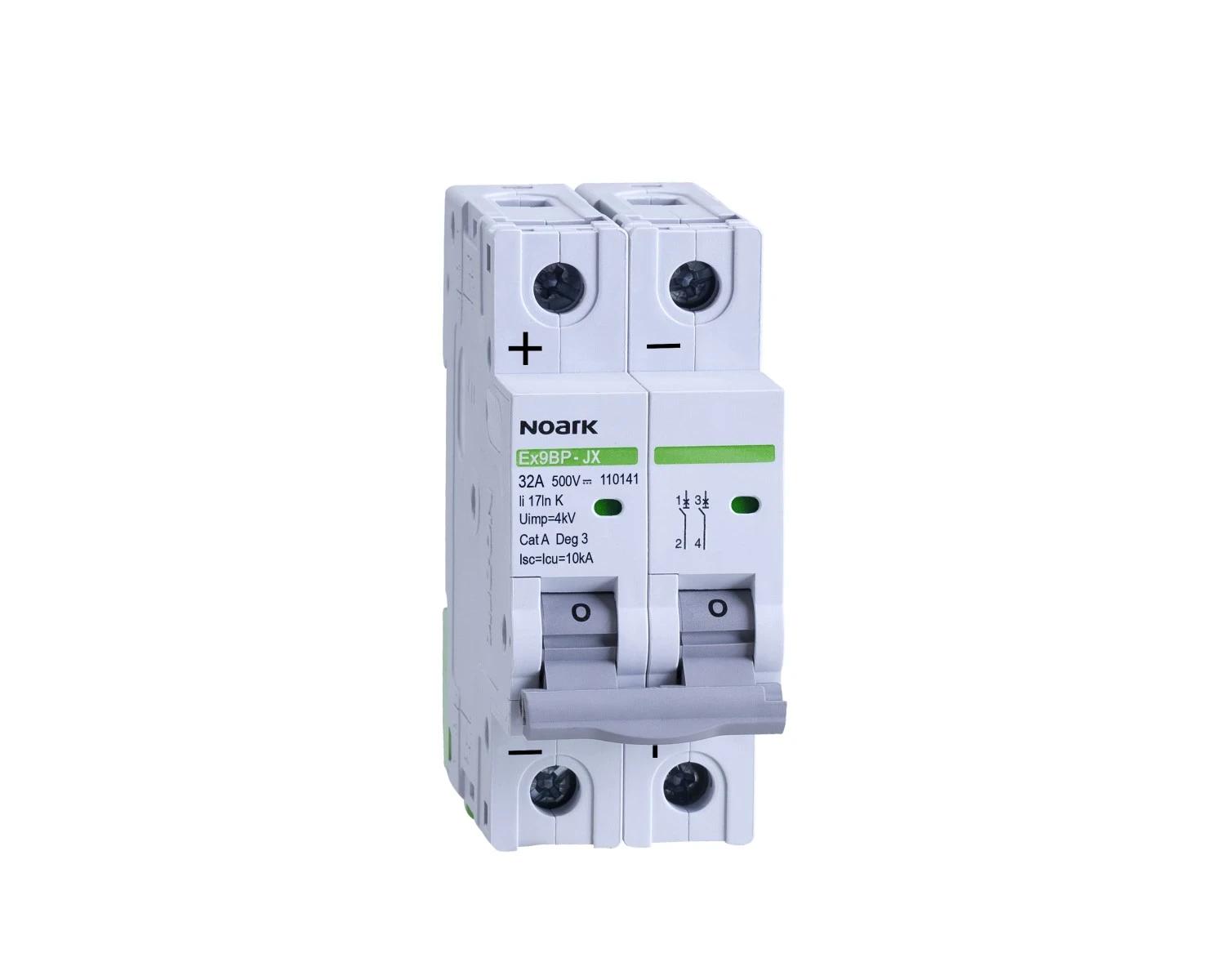

Miniature Circuit Breaker Ex9BP-JX(+) 2P K16
110138
8592765101389
General purpose DC Miniature Circuit Breakers Ex9BP-JX are designed for general direct current applications. Due to their polarity dependence it is necessary to respect the polarity of the current.
| Release characteristic | K |
| Number of poles (total) | 2 |
| Number of protected poles | 2 |
| Nominal rated current [A] | 16 |
| Nominal rated voltage [V] | 500 |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V [kA] | 10 |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V [kA] | 10 |
| Voltage type | DC |
| Current limiting class | 3 |
| Frequency [Hz] | - |
| Concurrently switching N-neutral | Nie |
| Over voltage category | 3 |
| Pollution degree | 3 |
| Width in number of modular spacings | 2 |
| Built-in depth [mm] | 74 |
| Additional equipment possible | Tak |
| Degree of protection (IP) | IP20 |
| Power loss [W] | 3.6 |
