- Ex9MV2S-PV/DC1500 160 IEC

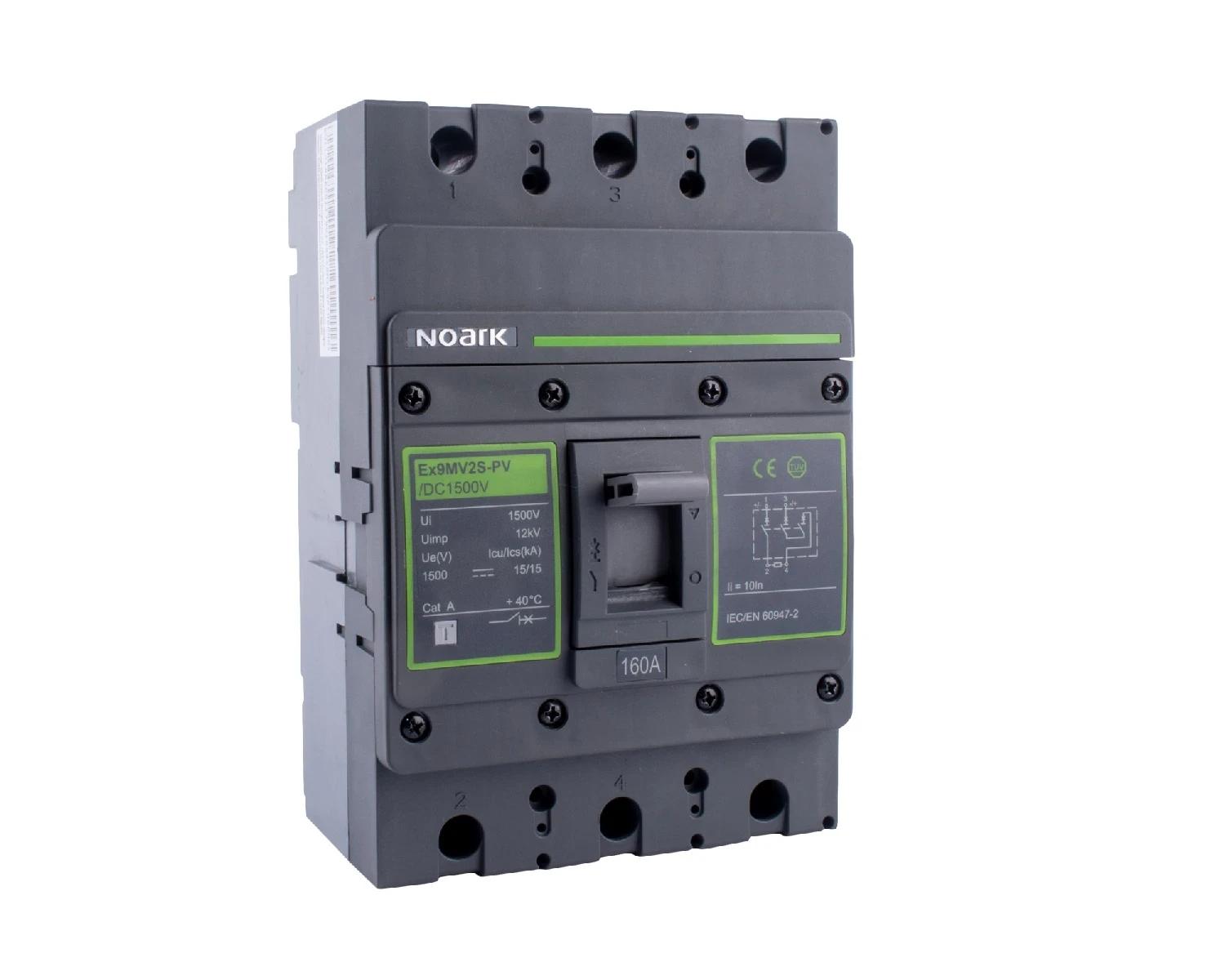

Ex9MV2S-PV/DC1500 160 IEC
110195
8592765101952
DC Moulded Case Circuit Breakers Ex9MV2S-PV are intended mainly for photovoltaic applications. Testing according to IEC / EN 60947-2 standards ensures functions and reliability for wide variety of applications including isolation.
| Type | Thermomagnetic |
| Rated permanent current Iu [A] | 160 |
| Rated voltage [V] | 1500 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz [kA] | 15 |
| Overload release current setting [A] | - |
| Adjustment range undelayed short-circuit release [A] | - |
| Integrated earth fault protection | Nie |
| Type of electrical connection of main circuit | Screw connection |
| Device construction | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting | Nie |
| DIN rail (top hat rail) mounting optional | Nie |
| Switched-off indicator available | Nie |
| With under voltage release | Nie |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Rocker lever |
| Complete device with protection unit | Tak |
| Motor drive integrated | Nie |
| Motor drive optional | Nie |
| Degree of protection (IP) | IP20 |
