Impulsni releji Ex9JU pogodni su uglavnom za domaćinstva u kojima je potrebna mala potrošnja energije.
Kontakti se prebacuju dovođenjem impulsa na kalem. Koriste se uglavnom u procesima automatizacije zgrada za prebacivanje i upravljanje rasvetom, grejnim i ventilacionim sistemima, pumpama, pumpama za grejanje i ostalim primenama.
Impulsni releji nude se u dve izvedbe, nazivne struje 16 ili 32 A. Svaka izvedba ima mogućnost do 4 preklopna kontakta. Hardverski prekidači na prednjoj strani uređaja služi radi ručne kontrole.

Tehnički podaci Ex9JU

Instrukcije za montažu Ex9JU

Sertifikat o usaglašenosti Ex9JU

Katalog Instalacioni- Modularni Uređaji

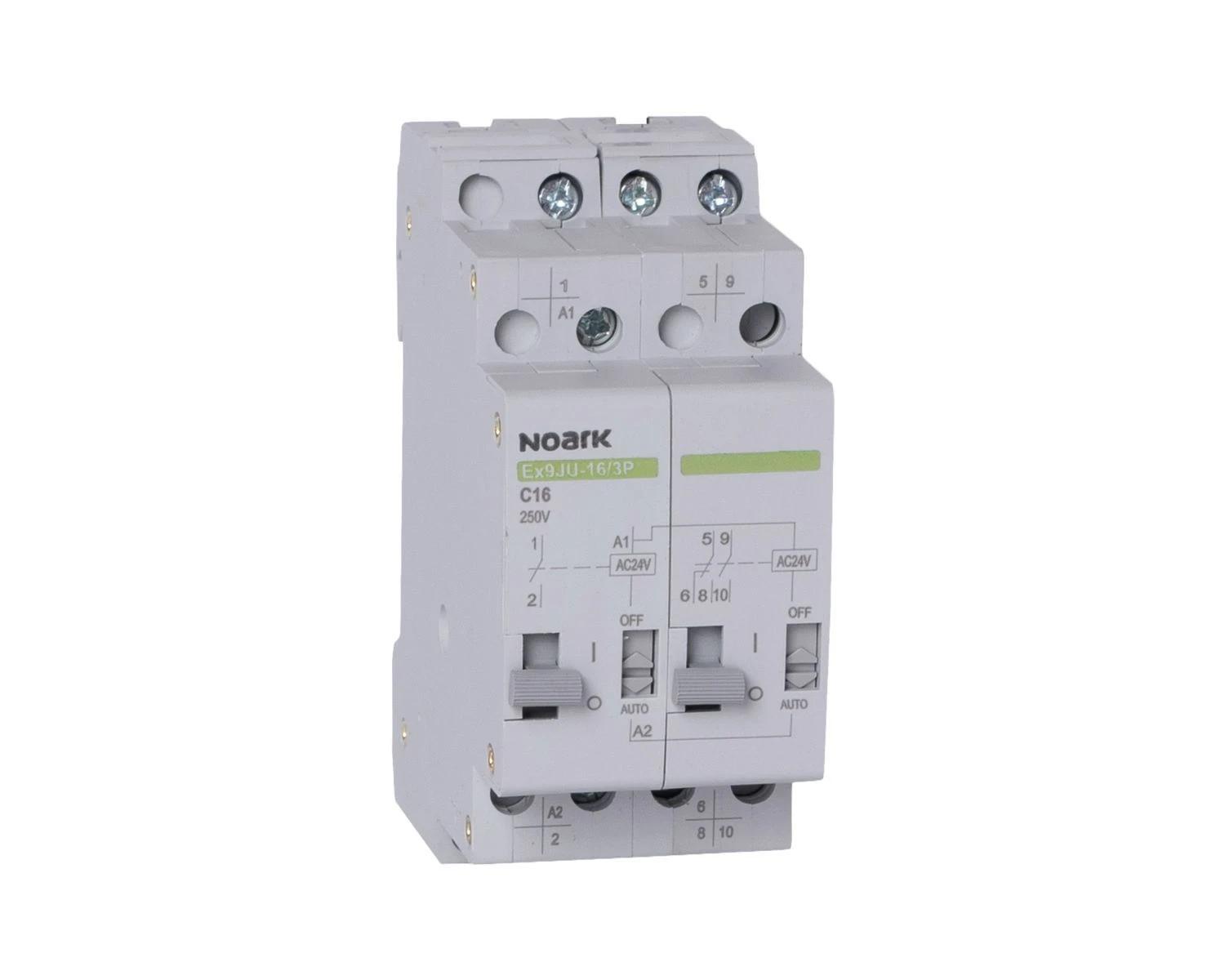

Impulsni releji Ex9JU-32/3P AC24V

Function

Mounting method

Width in number of modular spacings

Built-in depth [mm]

Number of normally open contacts

Number of normally closed contacts

Number of change-over contacts

Control voltage 1 [V]

Type of control voltage 1

Frequency control voltage 1 [Hz]

Rated operation current [A]

Supply voltage [V]

Voltage type of supply voltage

Max. incandescent lamp load [W]

Manual operation possible

Power loss [W]

Function	Electronic switch
Mounting method	DIN rail
Width in number of modular spacings	3
Built-in depth [mm]	70
Number of normally open contacts	3
Number of normally closed contacts	0
Number of change-over contacts	0
Control voltage 1 [V]	24
Type of control voltage 1	AC
Frequency control voltage 1 [Hz]	50
Rated operation current [A]	32
Supply voltage [V]	24
Voltage type of supply voltage	AC
Max. incandescent lamp load [W]	8000
Manual operation possible	Tak
Power loss [W]	23.4
