Impulse relays Ex9JU are suitable mainly for household where is low power consumption required.
Change-over contacts are switched while impulse is provided to the coil. They are mainly used in building automation processes for switching and controlling lightings, heating systems, ventilations, pumps, heating pumps and other applications.
Impulse relays are offered in two variants of rated current 16 or 32 A. Each version has possibility of up to 4 change-over contacts. Hardware switches on a front of device for manual control.

Datasheet Ex9JU

Mounting instruction Ex9JU

EU Declaration of conformity Ex9JU

Catalogue Installation Devices

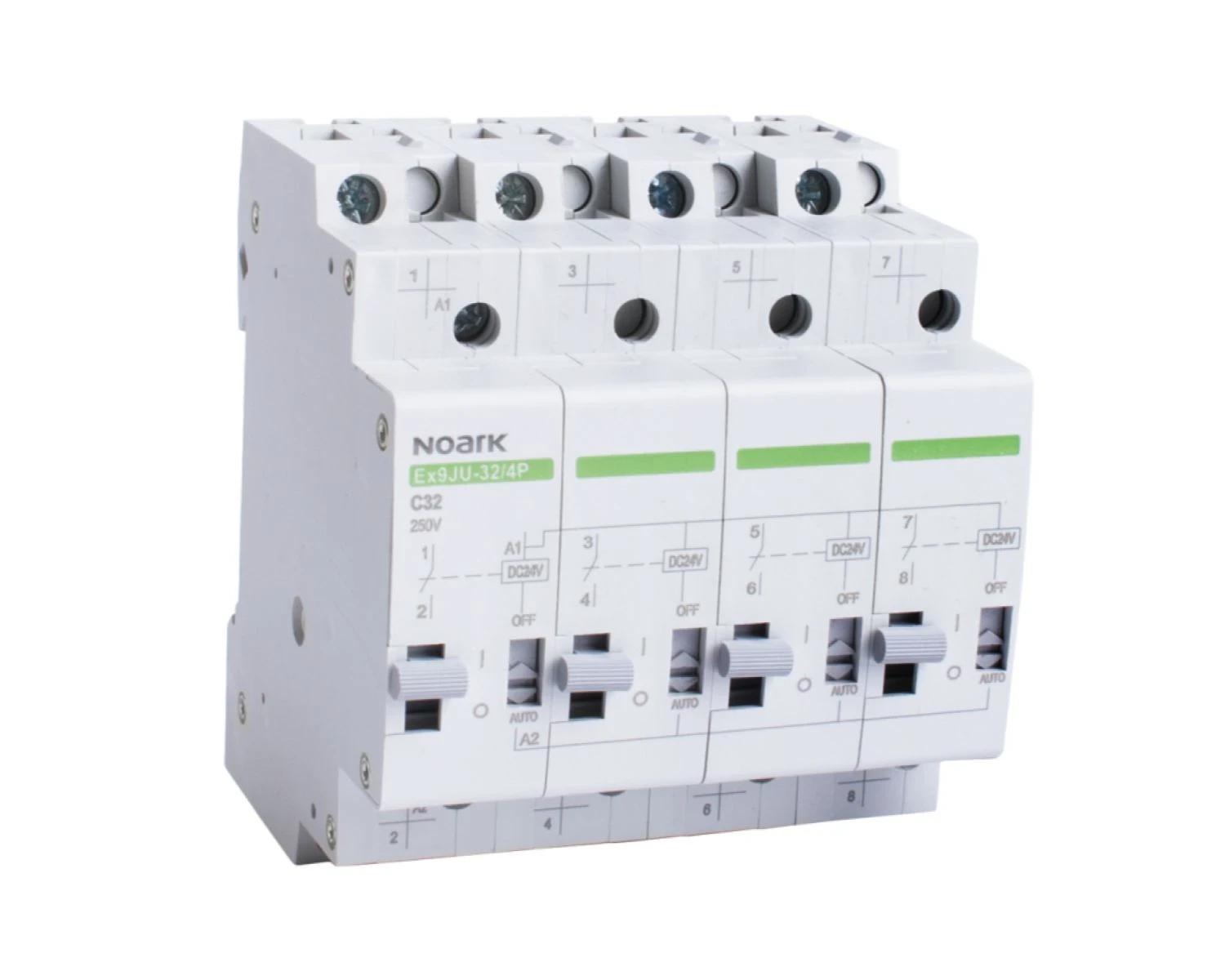

Impulse relay Ex9JU-32/4P AC24V

Function

Mounting method

Width in number of modular spacings

Built-in depth [mm]

Number of normally open contacts

Number of normally closed contacts

Number of change-over contacts

Control voltage 1 [V]

Type of control voltage 1

Frequency control voltage 1 [Hz]

Rated operation current [A]

Supply voltage [V]

Voltage type of supply voltage

Max. incandescent lamp load [W]

Manual operation possible

Power loss [W]

Function	Electronic switch
Mounting method	DIN rail
Width in number of modular spacings	4
Built-in depth [mm]	70
Number of normally open contacts	4
Number of normally closed contacts	0
Number of change-over contacts	0
Control voltage 1 [V]	24
Type of control voltage 1	AC
Frequency control voltage 1 [Hz]	50
Rated operation current [A]	32
Supply voltage [V]	24
Voltage type of supply voltage	AC
Max. incandescent lamp load [W]	8000
Manual operation possible	Tak
Power loss [W]	30.72
