Ex9JM insteekrelais voor industriële toepassingen schakelen kleinere belastingen in besturingscircuits. Ze zijn leverbaar in AC- en DC-uitvoeringen met nominale stromen van 3, 5 en 10 A en spoelspanningen van 12 tot 230 V.

Beschikbaar met twee of vier wisselcontacten. Relais en relaisvoet worden afzonderlijk geleverd. Voorzien van een handmatige vergrendeling aan de voorzijde.

Datasheet Ex9JM

Mounting instruction Ex9JM

EU Declaration of conformity Ex9JM

Catalogue Industrial Devices

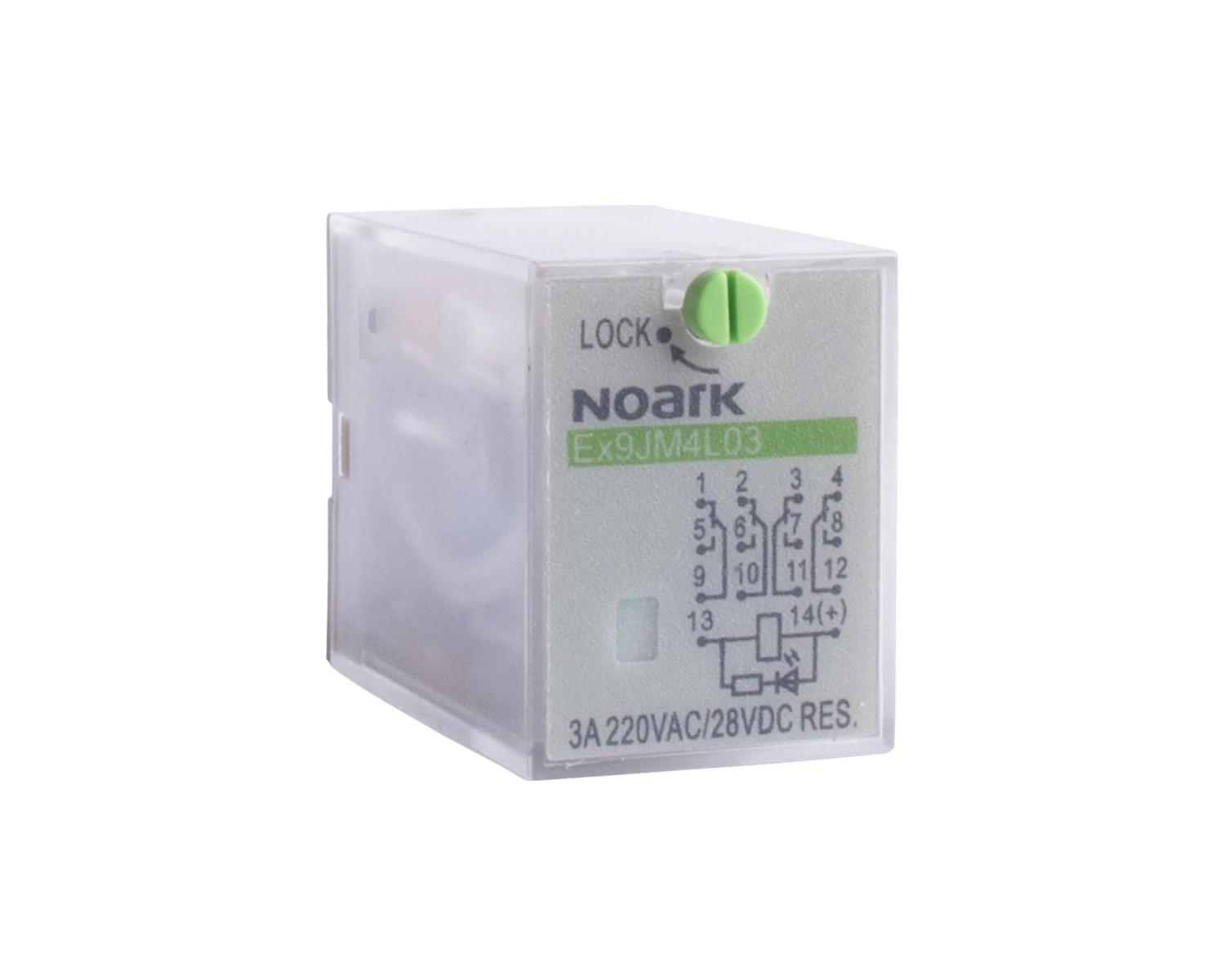

Universeel insteekrelais Ex9JM4L03 48VDC

Type of electric connection

With detachable clamps

Rated control supply voltage Us at AC 50 Hz [V]

Rated control supply voltage Us at DC [V]

Voltage type for actuating

Drive, polarization

Drive, switching attitude

Number of contacts as change-over contact

Type of switch contact

Complete with socket

Width [mm]

Height [mm]

Depth [mm]

Type of electric connection	Plug-in connection
With detachable clamps	Nie
Rated control supply voltage Us at AC 50 Hz [V]	-
Rated control supply voltage Us at DC [V]	48
Voltage type for actuating	DC
Drive, polarization	Polarized
Drive, switching attitude	Mono stable
Number of contacts as change-over contact	4
Type of switch contact	Single contact
Complete with socket	Nie
Width [mm]	21.50
Height [mm]	37
Depth [mm]	27.5
