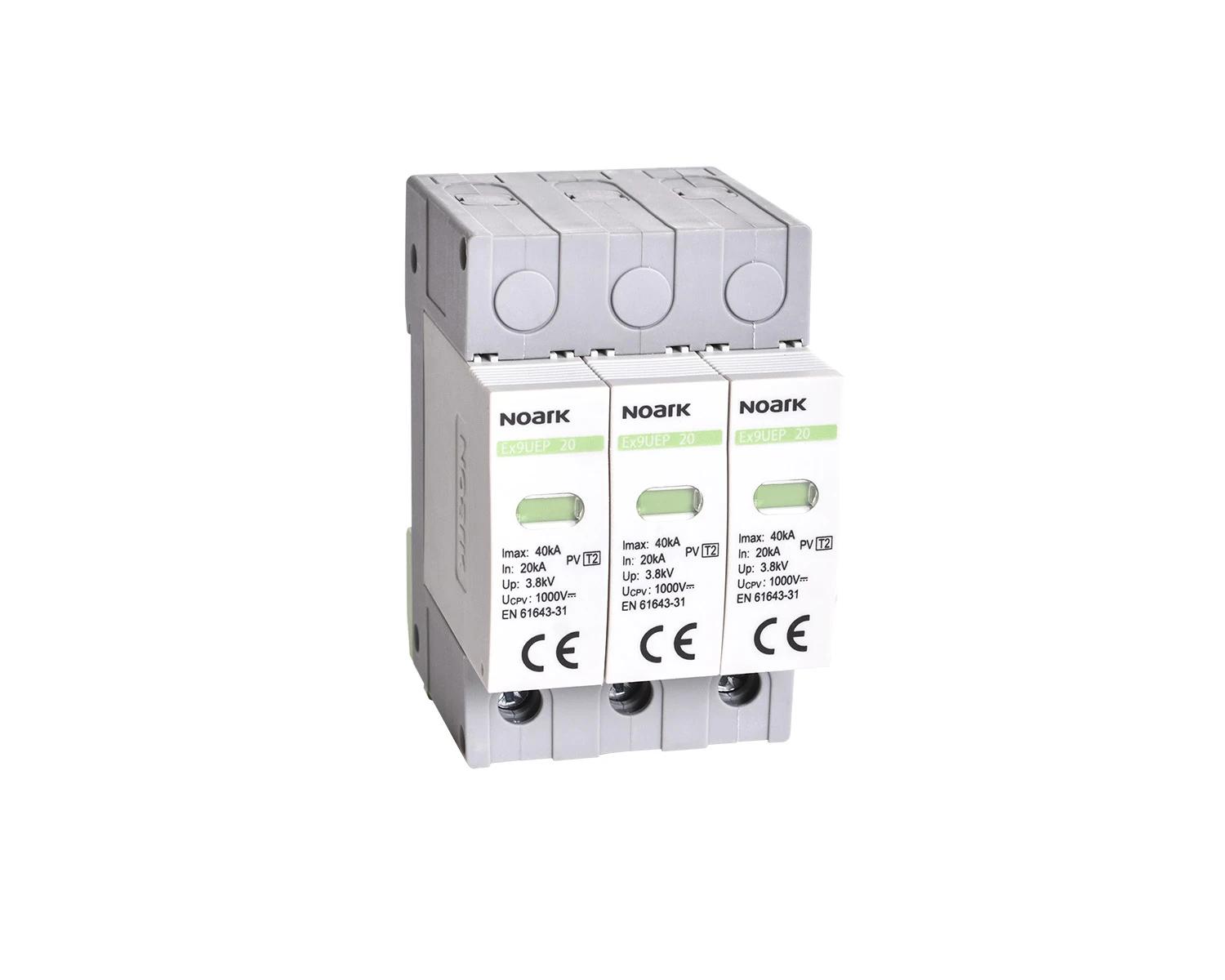

Odvodnici prenapona Ex9UEP 20R 3P 1000 (N)

112907
8592765129079

DC odvodnici prenapona serije Ex9UEP (N) namjenjeni su za sustave fotonapona. Ovi odvodnici su dizajnirani i ispitani prema PV T2 klasi iz EN 61643-31 standarda. Indikator stanja pomaže korisnicima uvid o statusu uređaja te ima mogućnost daljinskog oćitanja. Dizajn sa izvlačivim modulom olakšava zamjenu bez odspajanja uređaja.

Znajdź sklep
System configurationDC
Type of poles3
Nominal discharge surge current (8/20) [kA]20
Nominal voltage AC [V]1000
Max. continuous voltage AC [V]1000
Voltage protection level L-N [kV]905
Voltage protection level N-PE [kV]3.8
Short-circuit-proofNie
Mounting methodDIN rail (top hat rail) 35 mm
Construction size3 modular spacing
Max. conductor cross section solid (solid, stranded) [mm²]25
Max. conductor cross section flexible (fine-strand) [mm²]25
With remote signalling contactTak
Integrated backup fuseNie
Signalling at the deviceOptic
Category type 2Tak
Degree of protection (IP)IP20
Width in number of modular spacings3
Power loss [W]0.1
