PHS groepenkasten zijn geschikt voor utiliteits- en industriële installaties met een hoge beschermingsgraad (IP) en zijn uitgevoerd voor wandmontage.

Standaard meegeleverd: behuizing, deur, DIN-rails, N- en PE-klemmen, frontafdekking met module-uitsparing, afdekplaten voor lege posities en montagemateriaal.

Datasheet PHS

Mounting instruction PHS

EU Declaration of conformity PHS

Catalogue Consumer units

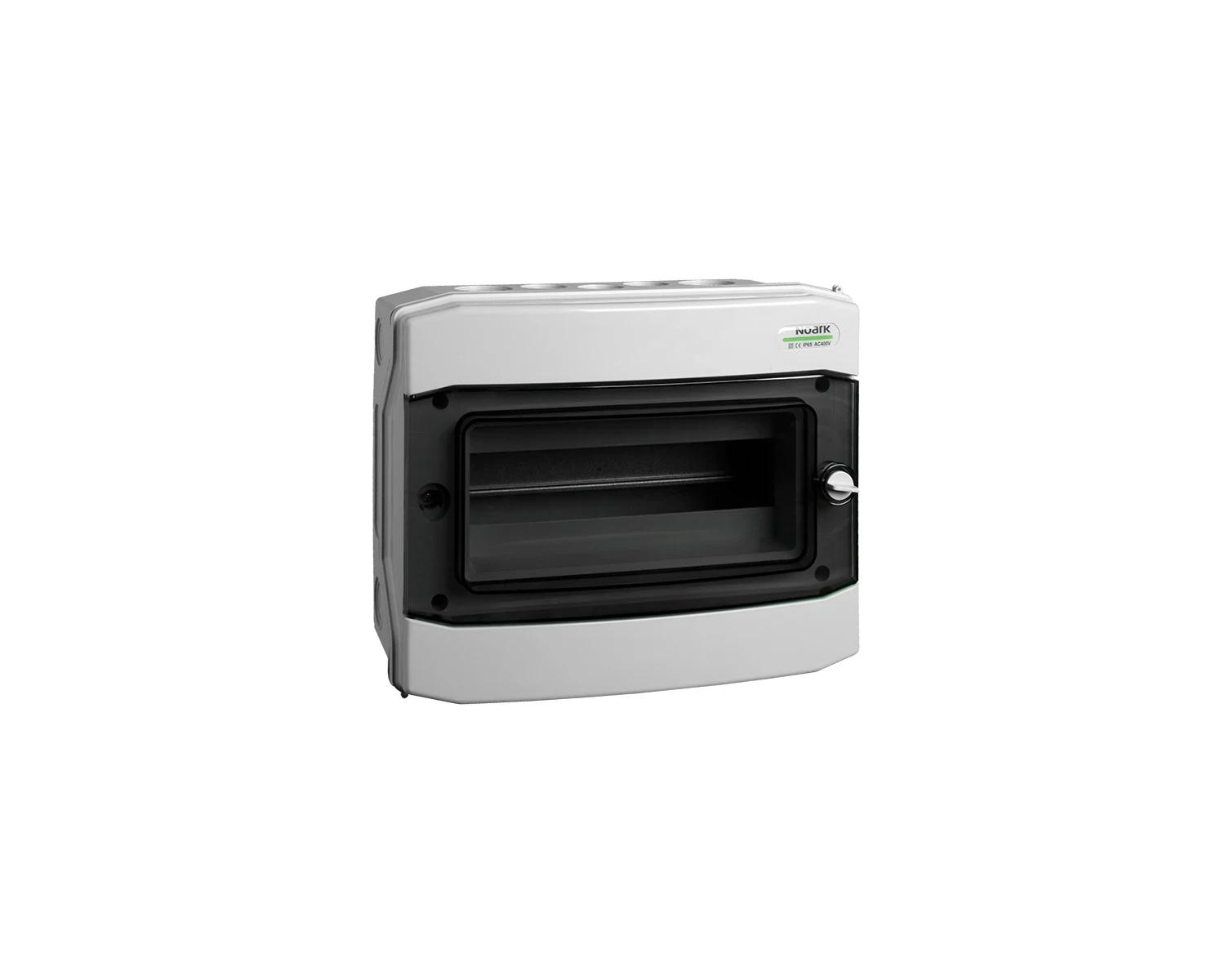

Groepenkast PHS 18T

Mounting method

Number of rows

Width in number of modular spacings

Type of cover

Cover model

Transparent cover/door

Material housing

Height [mm]

Width [mm]

Depth [mm]

Built-in depth [mm]

DIN-rail

With mounting plate

Extension possible

EMC-version

Colour

RAL-number

Degree of protection (IP)

With lock

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]

Mounting method	Surface mounting
Number of rows	1
Width in number of modular spacings	18
Type of cover	Door
Cover model	Closed
Transparent cover/door	Tak
Material housing	Plastic
Height [mm]	259
Width [mm]	428
Depth [mm]	144
Built-in depth [mm]	0
DIN-rail	Tak
With mounting plate	Nie
Extension possible	Nie
EMC-version	Nie
Colour	White
RAL-number	9003
Degree of protection (IP)	IP65
With lock	Nie
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 [W]	20
