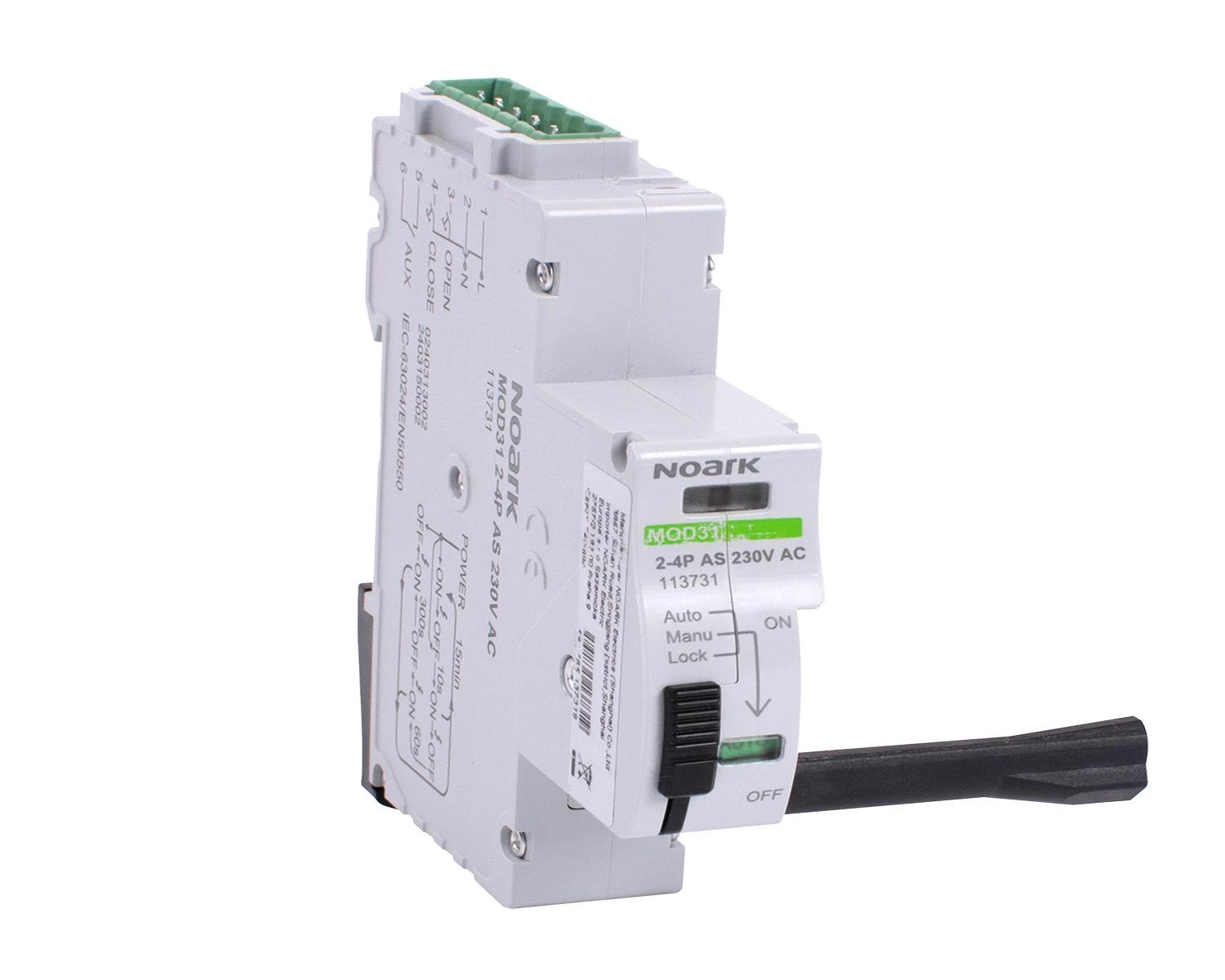

Motor Operator MOD31 is an accessory designed to facilitate remote control functionality for Ex9B MCBs. Its primary function is to enable remote operations such as opening, closing, and automatic resetting of the circuit breaker. Two toggle lengths to cover all pole sizes of Ex9B MCBs.

Datasheet MOD31

Mounting instruction MOD31

EU Declaration of conformity MOD31

Datasheet Ex9B, Ex9PN

Catalogue Installation Devices

Motor operator MOD31 2-4P A 48V DC EU

Device fitting

Additional equipment

Attached at delivery

Assembly width (TE)

Number of normally open contacts

Number of normally closed contacts

Number of change-over contacts

Number of fault-signal switches

Rated switch current [A]

Nominal rated voltage [V]

Control voltage type

With autotest for earth leakage function

Suitable for max. number of poles main contact unit (total)

Suitable for max. current main contact unit [A]

Width in number of modular spacings

Device fitting	Miniature circuit breaker (MCB)
Additional equipment	Remote drive
Attached at delivery	Nie
Assembly width (TE)	1
Number of normally open contacts	1
Number of normally closed contacts	0
Number of change-over contacts	0
Number of fault-signal switches	0
Rated switch current [A]	1
Nominal rated voltage [V]	48
Control voltage type	DC
With autotest for earth leakage function	Nie
Suitable for max. number of poles main contact unit (total)	2-4
Suitable for max. current main contact unit [A]	-
Width in number of modular spacings	1
