Group Change-Over Switches Ex9BT3G are designed and intended for switching of auxiliary, control, measuring and switching networks. Tetsing according 60947-3 standard ensure functions na reliability for wide variety of applications. Utilization category AC-22A allows switching under load. They are available in variants with change-over contacts (CO) from 1 CO up to 4 CO. Contact form ( I-O-II ) allows a load to be manually changed from one electrical source to another, without risk of short-circuit.

Datasheet Ex9BT3G

Mounting instruction Ex9BT3G

EU Declaration of conformity Ex9BT3G

Catalogue Installation Devices

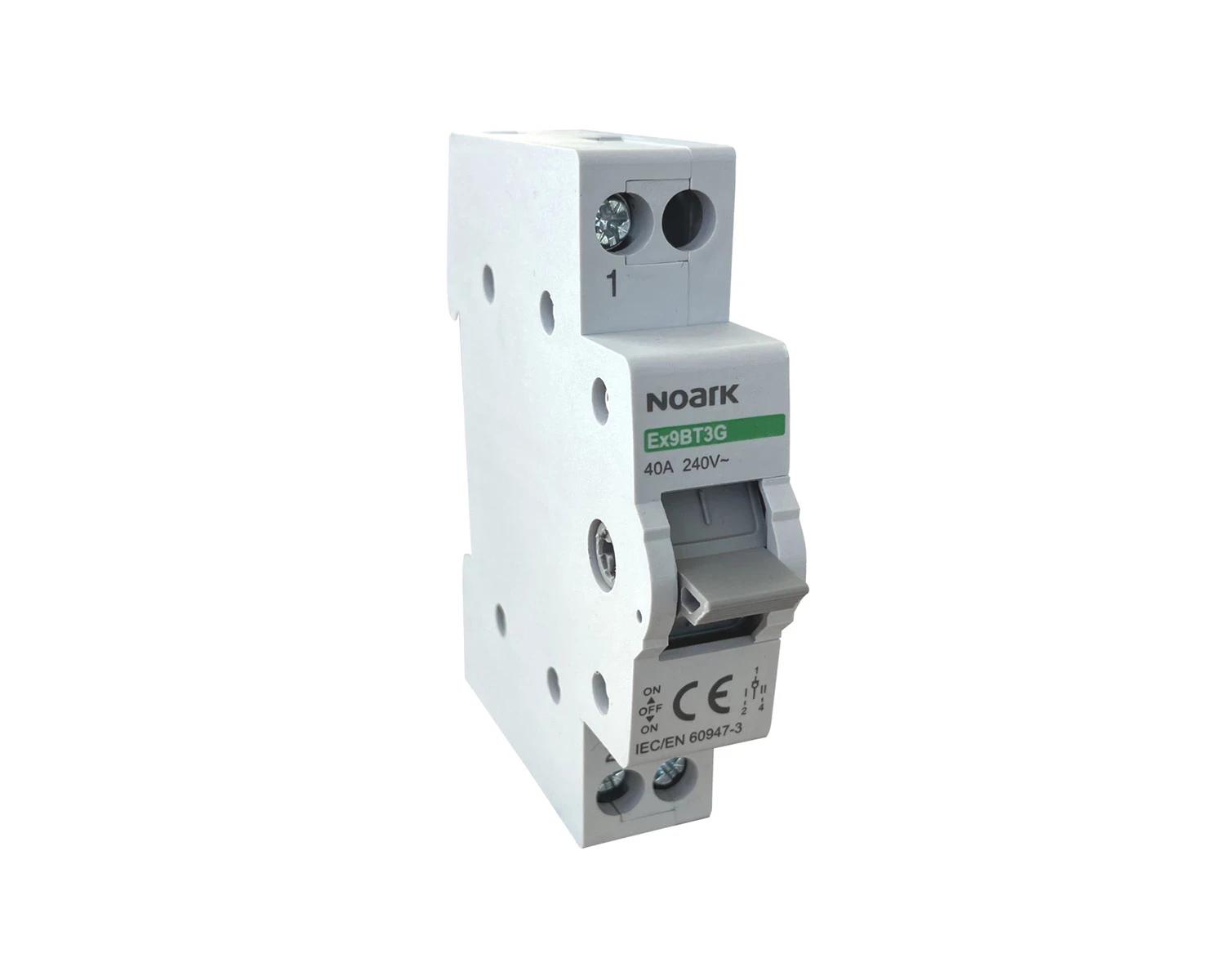

Group changeover switch Ex9BT3G 1CO 40A

Switching function

Number of normally open contacts

Number of normally closed contacts

Number of change-over contacts

Number of poles

Nominal rated current [A]

Nominal rated voltage [V]

Rated switching capacity [kA]

Short-circuit breaking capacity (Icw) [kA]

Voltage type

Forced segregation (according to DIN VDE 0113)

With signal lamp

Colour calotte

Width in number of modular spacings

Built-in depth [mm]

Degree of protection (IP)

Power loss [W]

Switching function	Group switch
Number of normally open contacts	0
Number of normally closed contacts	0
Number of change-over contacts	1
Number of poles	1
Nominal rated current [A]	40
Nominal rated voltage [V]	230
Rated switching capacity [kA]	-
Short-circuit breaking capacity (Icw) [kA]	-
Voltage type	AC
Forced segregation (according to DIN VDE 0113)	Nie
With signal lamp	Nie
Colour calotte	Green
Width in number of modular spacings	1
Built-in depth [mm]	75
Degree of protection (IP)	IP20
Power loss [W]	1.8
