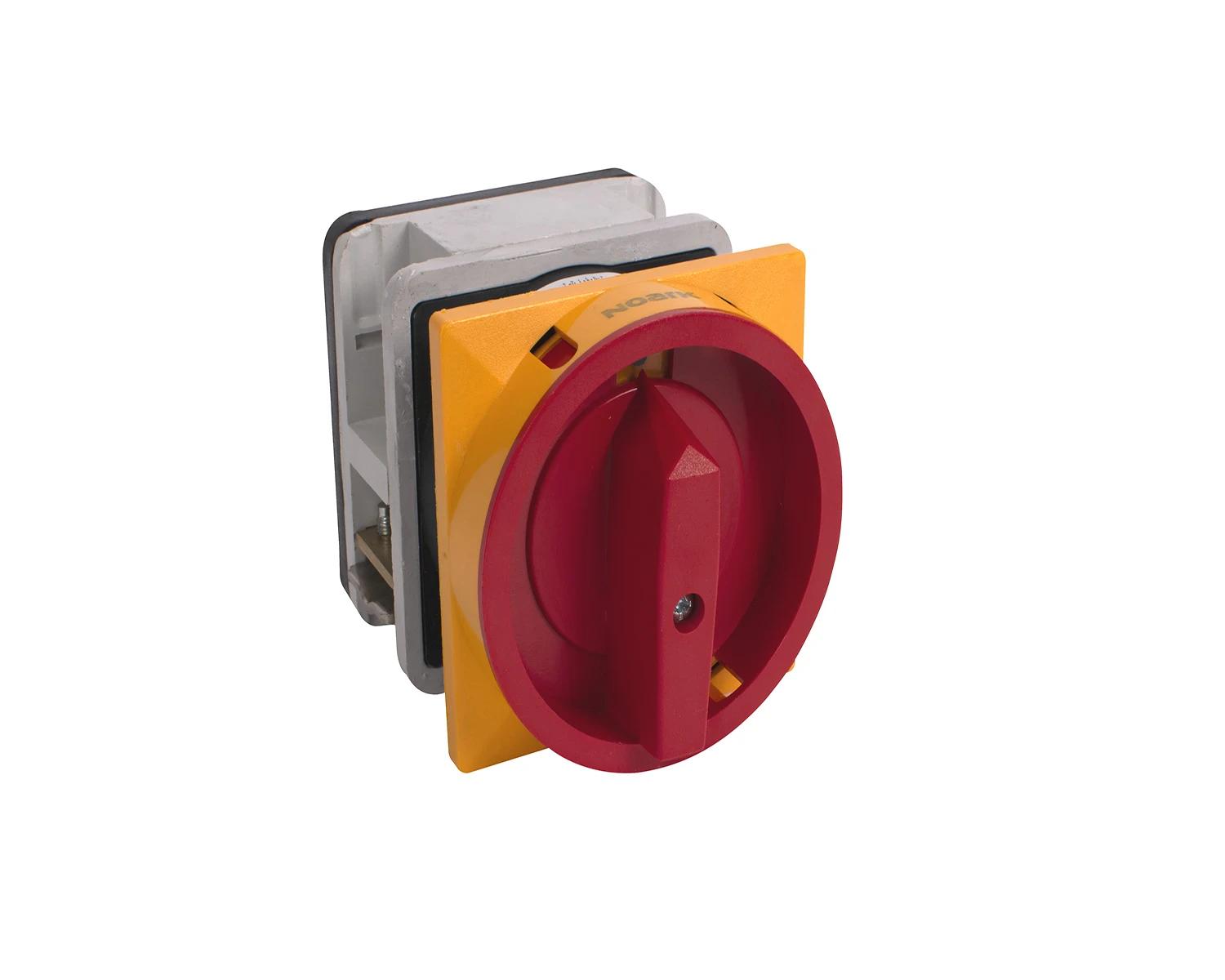

Ex9ZE, 2 Positions,  In=160A, 2 Phases, Safety Switch On-Off 0-1

Tehnički podaci Ex9ZE

Potvrda o usklađenosti Ex9ZE SSW

Vrsta prekidača	Prekidač za on/off
Number of poles	2
Max. rated operation voltage Ue AC [V]	400
Rated permanent current Iu [A]	160
Number of switch positions	2
S nultim (off) položajem	Tak
S uvlačenjem u 0-položaj	Nie
Device construction	Uređaj za površinsku montažu
Width in number of modular spacings	-
Suitable for distribution board installation	Tak
Suitable for intermediate mounting	Tak
Kompletan uređaj u kućištu	Nie
Type of control element	Turn button
Veličina prednjeg štita	88x88 mm
Degree of protection (IP), front side	IP40
Stupanj zaštite (NEMA), prednja strana	-
