- Ex9ZE7-16/3P VM

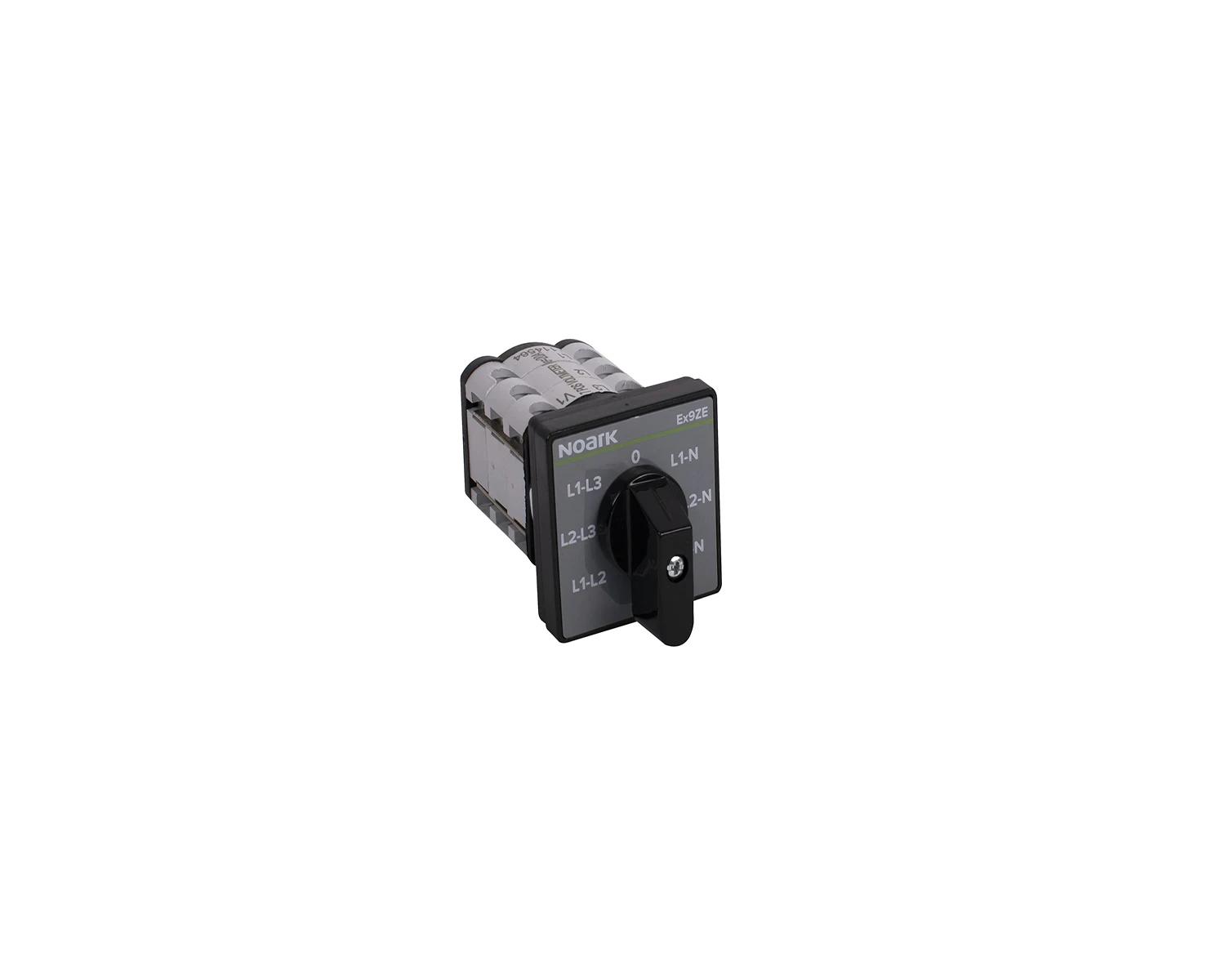

Ex9ZE7-16/3P VM
114563
8592765145635
Ex9ZE, 7 Positions, In=16A, 3 Phases, Voltmeter 1-2-3-0-4-5-6
| Type of switch | On/off switch |
| Number of poles | 3 |
| Max. rated operation voltage Ue AC [V] | 400 |
| Rated permanent current Iu [A] | 16 |
| Number of switch positions | 7 |
| With zero (off) position | Tak |
| With retraction in 0-position | Nie |
| Device construction | Surface mounted device |
| Width in number of modular spacings | - |
| Suitable for distribution board installation | Tak |
| Suitable for intermediate mounting | Tak |
| Complete device in housing | Nie |
| Type of control element | Turn button |
| Front shield size | 48x48 mm |
| Degree of protection (IP), front side | IP40 |
| Degree of protection (NEMA), front side | - |
