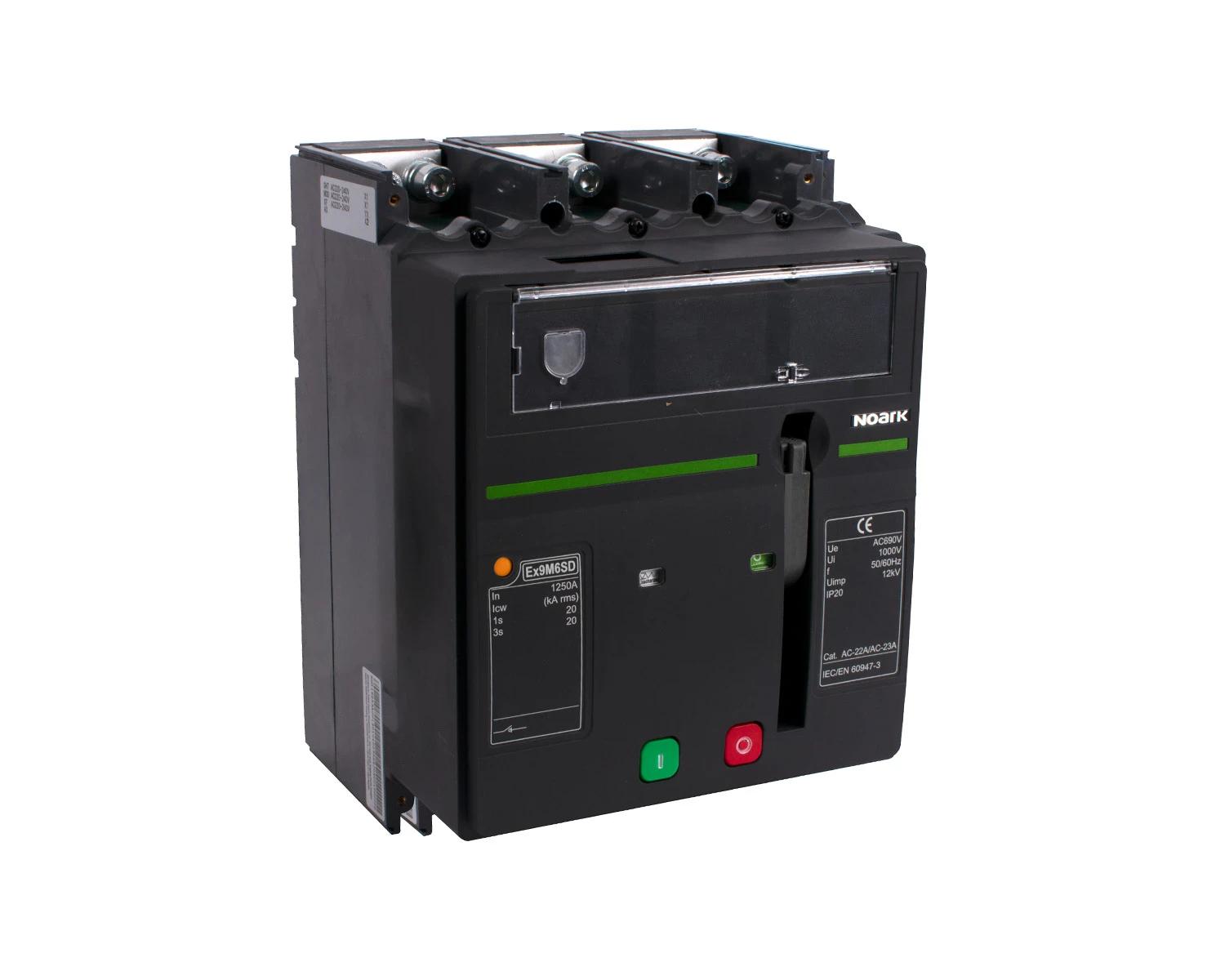

Ex9M6SD DC1250 3P MOD AC230 EU

116261
8592765162618

DC verzije rastavljača Ex9MSD temeljenih na MCCB-u koriste se kao glavne sklopke u istosmjernim aplikacijama, kao što su PV instalacije. Ispitivanje u skladu sa standardima IEC / EN 60947-3 osigurava funkcije i pouzdanost za razne primjene. Ovi rastavljači slijede isti dizajn kao i njihovi ekvivalenti prekidača. Stoga postoji mogućnost korištenja potpuno kompatibilnog raspona vanjskih i unutarnjih dodataka uključujući produžene okretne ručke, pomoćne kontakte, okidačke jedinice i mnoge druge.

Znajdź sklep
Version as main switchTak
Version as maintenance-/service switchNie
Version as safety switchNie
Version as emergency stop installationNie
Version as reversing switchNie
Number of switches1
Max. rated operation voltage Ue AC [V]-
Rated permanent current Iu [A]1250
Rated permanent current at AC-23, 400 V [A]1250
Rated permanent current at AC-21, 400 V [A]-
Rated short-time withstand current lcw8
Conditioned rated short-circuit current Iq-
Number of poles3
Motor drive optionalNie
Motor drive integratedTak
Voltage release optionalTak
Device constructionBuilt-in device fixed built-in technique
Suitable for ground mountingTak
Suitable for front mounting 4-holeNie
Suitable for front mounting centerNie
Suitable for distribution board installationTak
Suitable for intermediate mountingTak
Colour control elementGrey
Type of control elementRocker lever
InterlockableNie
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
