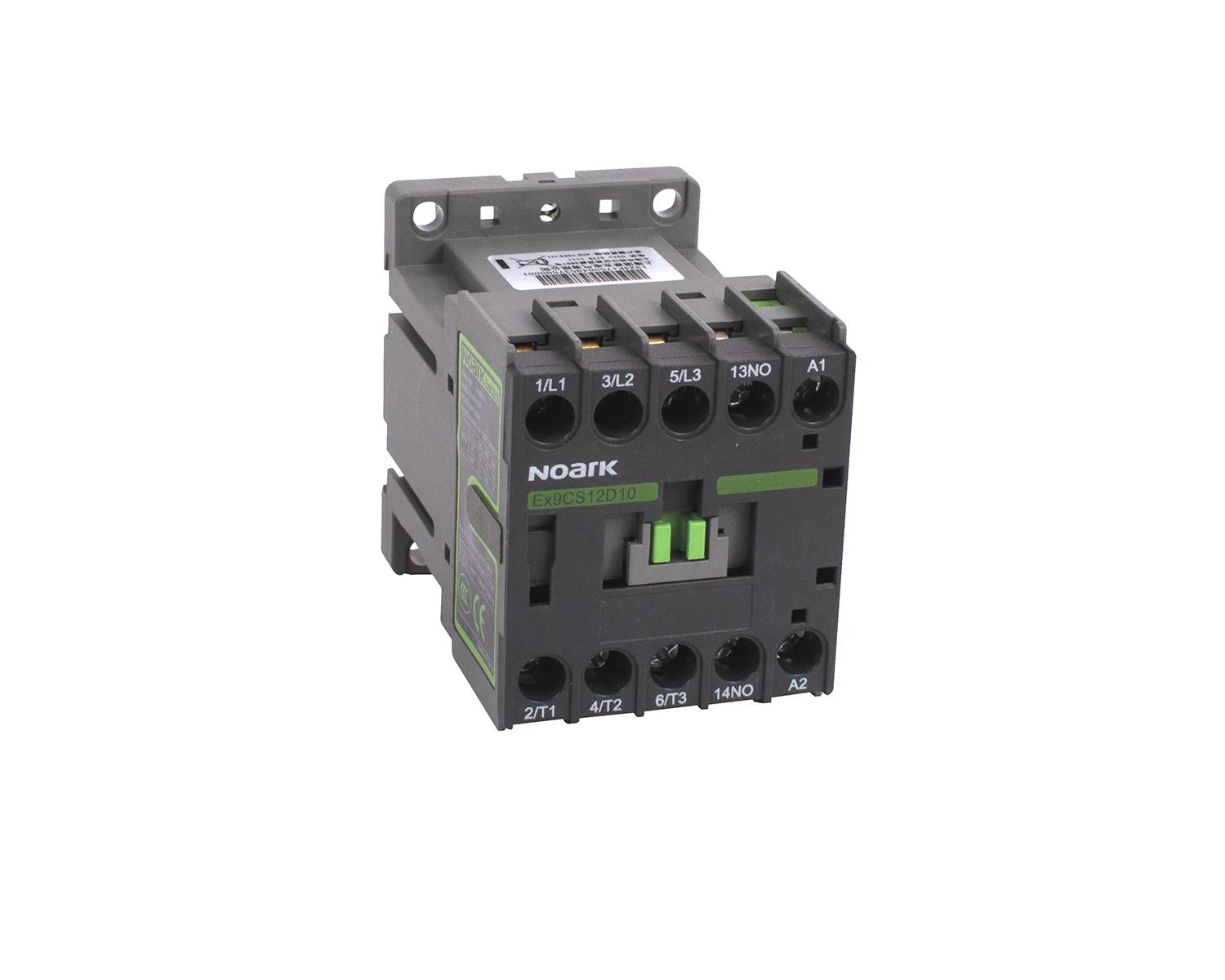

Kontaktor s DC zavojnicom Ex9CS12D 01 3P 220V DC EU
116416
8592765164162
Ex9CSD kontaktori donose izvrsne električne parametre u obliku vrlo kompaktnog uređaja. Ovi kontaktori mogu se koristiti i za industrijsku i za kućnu primjenu. Toplinska struja i AC-1 opterećenje od 20 A pri 690 V AC omogućuje prebacivanje otpornih opterećenja s maksimalnim strujama uobičajenim za kućne primjene. Zahvaljujući kompaktnim dimenzijama, Ex9CSD kontaktori idealno su rješenje za prostorno ograničene instalacije. Kontaktori se nude kao 3-polna i 4-polna verzija te kao 4-polna verzija s konfiguracijom glavnih kontakata 2 normalno otvorena i 2 normalno zatvorena (4P/22).
| Rated control supply voltage Us at AC 50 Hz [V] | - |
| Rated control supply voltage Us at DC [V] | 220 |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-1, 400 V [A] | 20 |
| Rated operation current Ie at AC-3, 400 V [A] | 12 |
| Rated operation power at AC-3, 400 V [kW] | 5.5 |
| Rated operation current Ie at AC-4, 400 V [A] | 12 |
| Rated operation power at AC-4, 400 V [kW] | 5.5 |
| Modular version | Nie |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Cable clamp |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 3 |
| Power loss [W] | 0.12 |
