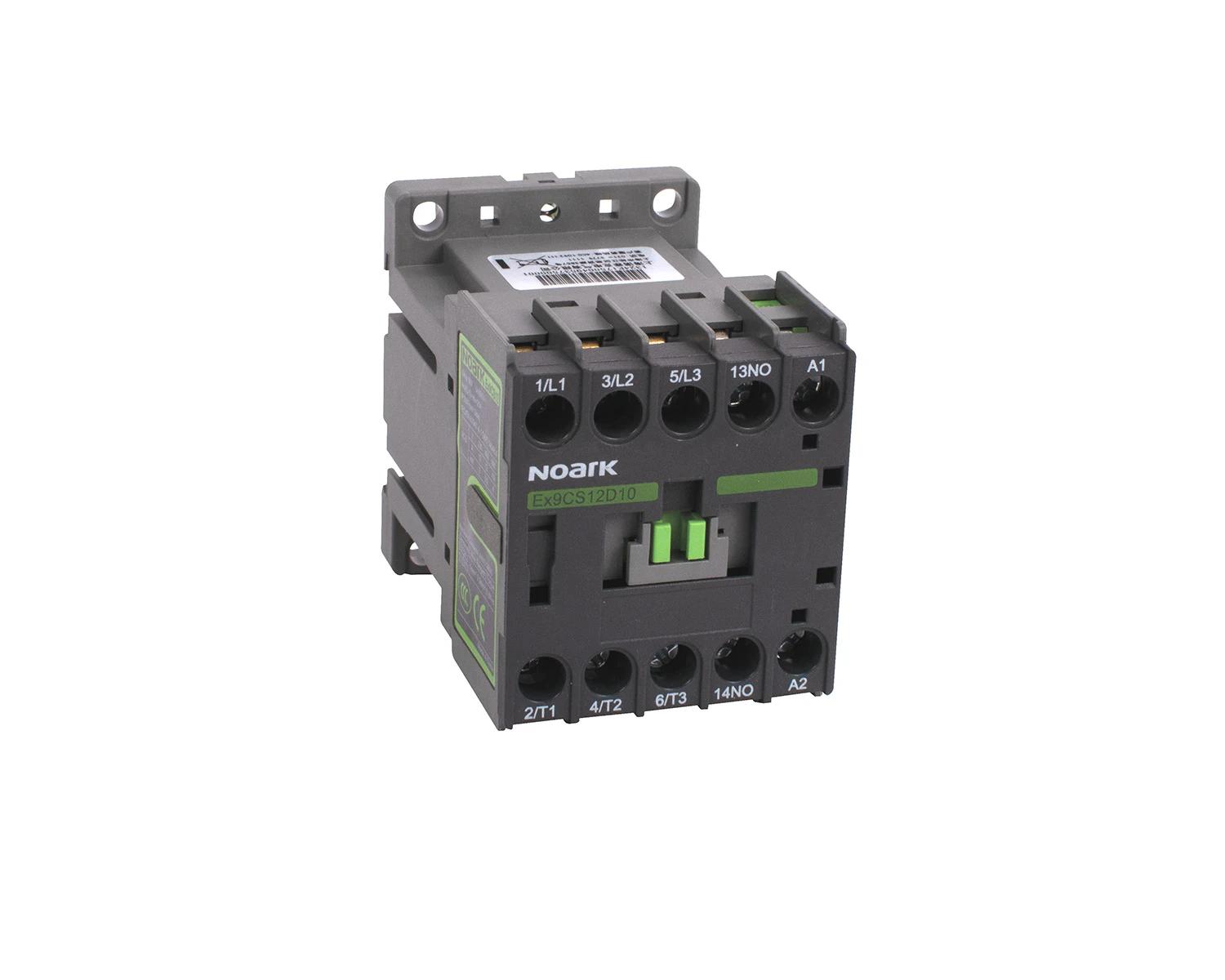

DC coil contactor Ex9CS12D 10 3P 110V DC EU
116421
8592765164216
Ex9CSD contactors bring excellent electric parameters in the form of very compact device. These contactors can be used for both industrial as well as domestic applications. Thermal current and AC-1 load 20 A at 690 V AC allows switching of resistive loads with maximum currents usual for domestic applications. Thanks to compact dimensions, Ex9CSD contactors are ideal solution for space limited installations. Contactors are offered as 3 and 4-pole versions and as a 4-pole version with main contacts configuration 2 normally open and 2 normally closed (4P/22).
| Rated control supply voltage Us at AC 50 Hz [V] | - |
| Rated control supply voltage Us at DC [V] | 110 |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-1, 400 V [A] | 20 |
| Rated operation current Ie at AC-3, 400 V [A] | 12 |
| Rated operation power at AC-3, 400 V [kW] | 5.5 |
| Rated operation current Ie at AC-4, 400 V [A] | 12 |
| Rated operation power at AC-4, 400 V [kW] | 5.5 |
| Modular version | Nie |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Cable clamp |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 3 |
| Power loss [W] |
