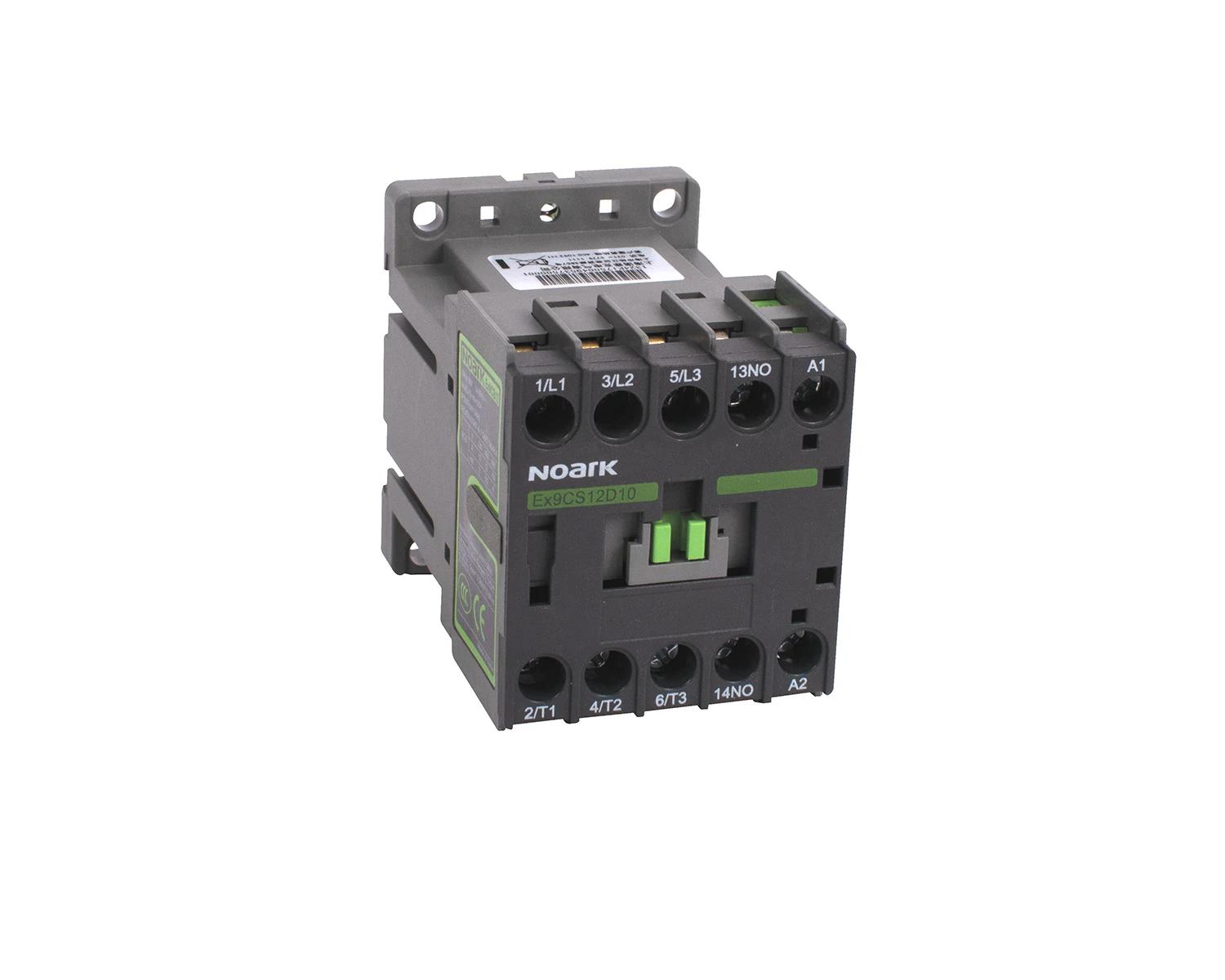

DC coil contactor Ex9CS12D 4P 24V DC EU

116427
8592765164278

Ex9CSD contactors bring excellent electric parameters in the form of very compact device. These contactors can be used for both industrial as well as domestic applications. Thermal current and AC-1 load 20 A at 690 V AC allows switching of resistive loads with maximum currents usual for domestic applications. Thanks to compact dimensions, Ex9CSD contactors are ideal solution for space limited installations. Contactors are offered as 3 and 4-pole versions and as a 4-pole version with main contacts configuration 2 normally open and 2 normally closed (4P/22).

Znajdź sklep
Rated control supply voltage Us at AC 50 Hz [V]-
Rated control supply voltage Us at DC [V]24
Voltage type for actuatingDC
Rated operation current Ie at AC-1, 400 V [A]20
Rated operation current Ie at AC-3, 400 V [A]12
Rated operation power at AC-3, 400 V [kW]5.5
Rated operation current Ie at AC-4, 400 V [A]12
Rated operation power at AC-4, 400 V [kW]5.5
Modular versionNie
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Type of electrical connection of main circuitCable clamp
Number of normally closed contacts as main contact0
Number of main contacts as normally open contact4
Power loss [W]
