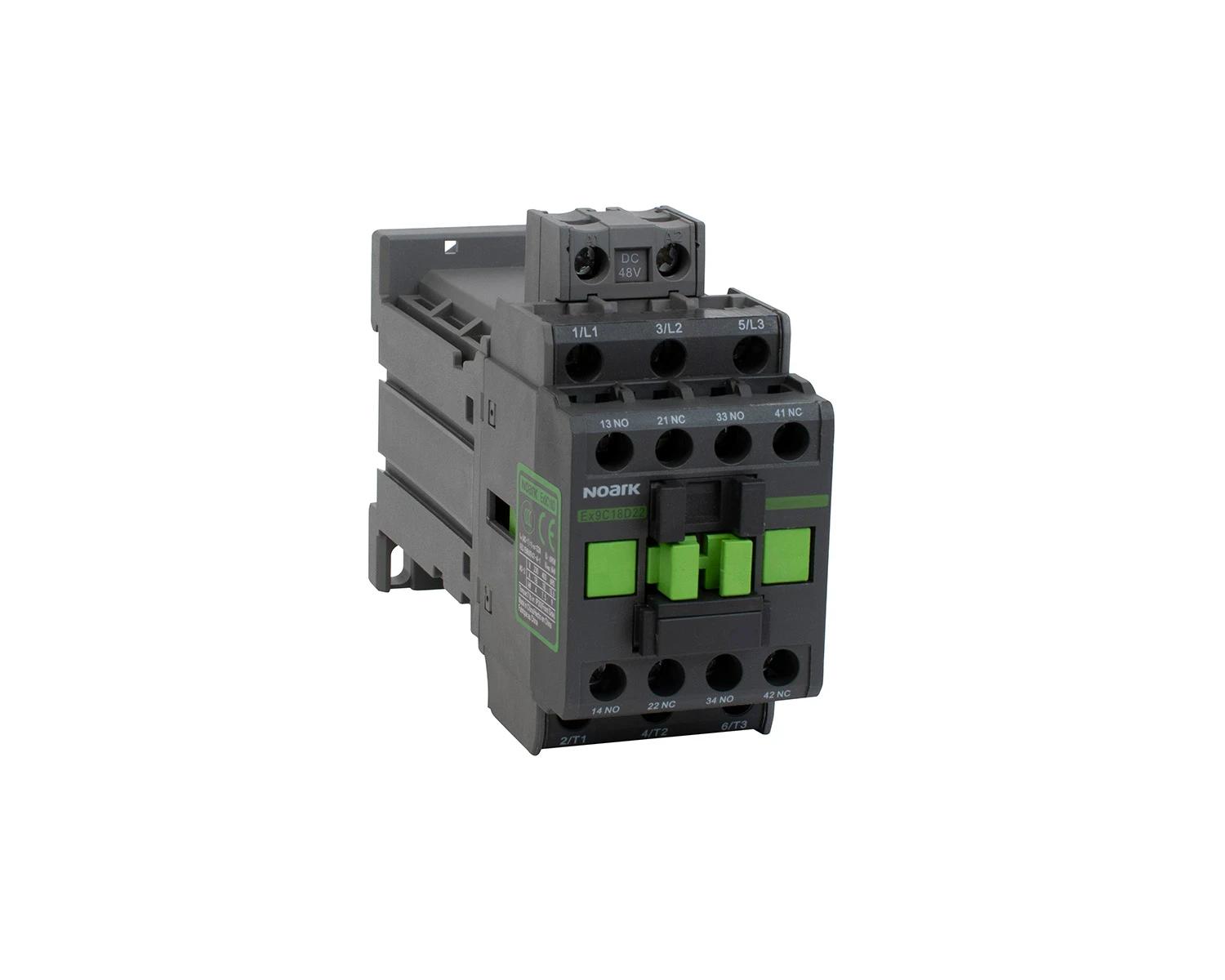

- Magneetschakelaar met DC-spoel Ex9C09D 22 3P 24V EU
Magneetschakelaar met DC-spoel Ex9C09D 22 3P 24V EU
116439
8592765164391
Ex9CD magneetschakelaars met DC-spoel worden gebruikt voor het schakelen van elektrische circuits in gelijkstroomtoepassingen. Ze worden toegepast in industriële installaties met hogere belastingen, waar betrouwbaarheid en energie-efficiëntie belangrijk zijn. De serie is beschikbaar in vier bouwgroottes met AC-3 nominale stromen van 9 tot 100 A bij 400 V. Alle bouwgroottes maken gebruik van dezelfde hulpkontacten en zijn compatibel met overbelastingsrelais Ex9R, die zijn afgestemd op de bouwgrootte en nominale stroom van de magneetschakelaars. Bouwgrootte 18: 9–18 A Bouwgrootte 38: 25–32 A Bouwgrootte 65: 40–65 A Bouwgrootte 100: 80–100 A
| Rated control supply voltage Us at AC 50 Hz [V] | - |
| Rated control supply voltage Us at DC [V] | 24 |
| Voltage type for actuating | DC |
| Rated operation current Ie at AC-1, 400 V [A] | 25 |
| Rated operation current Ie at AC-3, 400 V [A] | 9 |
| Rated operation power at AC-3, 400 V [kW] | 4 |
| Rated operation current Ie at AC-4, 400 V [A] | 9 |
| Rated operation power at AC-4, 400 V [kW] | 4 |
| Modular version | Nie |
| Number of auxiliary contacts as normally open contact | 2 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Type of electrical connection of main circuit | Cable clamp |
| Number of normally closed contacts as main contact | 0 |
| Number of main contacts as normally open contact | 3 |
| Power loss [W] | 2.9 |
