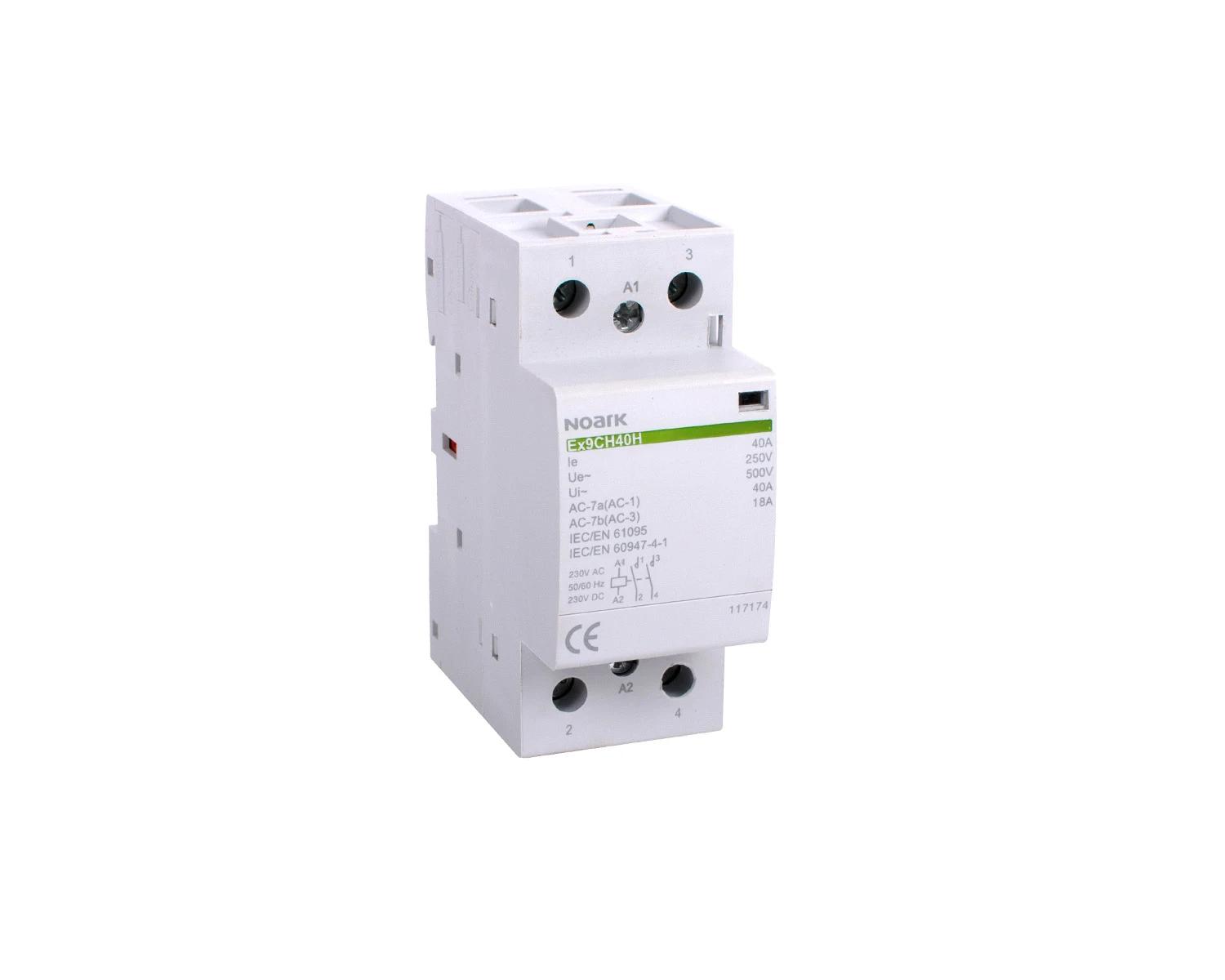

The Ex9CHH installation contactors are designed for use in household and building modular distribution boards. These contactors are primarily utilized in building automation systems for the switching and control of lighting, heating systems, ventilation, pumps, heat pumps, and other applications. The silent operation of these contactors makes them particularly well-suited for environments where noise reduction is critical, such
as offices and residential settings. Additionally, their AC/DC control voltage capabilities meet higher technical demands, ensuring dependable operation in more demanding scenarios.

The Ex9CHH installation contactors are designed for use in household and building modular distribution boards. These contactors are primarily utilized in building automation systems for the switching and control of lighting, heating systems, ventilation, pumps, heat pumps, and other applications. The silent operation of these contactors makes them particularly well-suited for environments where noise reduction is critical, such
as offices and residential settings. Additionally, their AC/DC control voltage capabilities meet higher technical demands, ensuring dependable operation in more demanding scenarios.

Tehnički podaci Ex9CHH

Instrukcije za montažu Ex9CHH

Sertifikat o usaglašenosti Ex9CHH

Katalog Instalacioni- Modularni Uređaji

Ex9CH63H 11 12V AC/DC

Rated operating voltage [V]

Rated operation current [A]

Utility category

Rated excitation voltage [V]

Voltage type (operating voltage)

Voltage type (excitation voltage)

Number of normally open contacts

Number of normally closed contacts

Slider for hand switch

Number of modular spacings

Built-in depth [mm]

Additional equipment possible

Degree of protection (IP)

Width in number of modular spacings

Power loss [W]

Rated operating voltage [V]	230 - 400
Rated operation current [A]	63
Utility category	1
Rated excitation voltage [V]	12
Voltage type (operating voltage)	AC
Voltage type (excitation voltage)	AC/DC
Number of normally open contacts	1
Number of normally closed contacts	1
Slider for hand switch	Nie
Number of modular spacings	2
Built-in depth [mm]	67.5
Additional equipment possible	Tak
Degree of protection (IP)	IP20
Width in number of modular spacings	2
Power loss [W]
